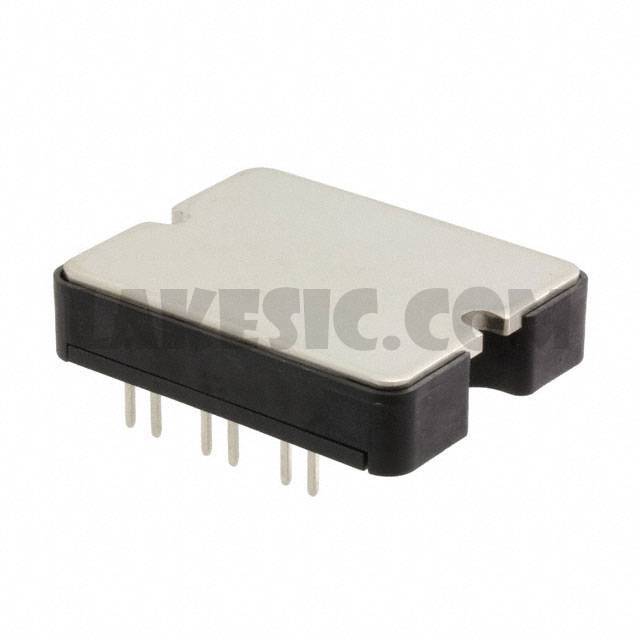

APTM120DA30CT1G

Part NumberAPTM120DA30CT1G

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 1200V 31A SP1

DatasheetAPTM120DA30CT1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1200V 31A (Tc) 657W (Tc) Chassis Mount SP1

To learn about the specification of APTM120DA30CT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM120DA30CT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM120DA30CT1G.
We are offering APTM120DA30CT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM120DA30CT1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

APTM120DA30CT1G

Standard Package

Manufacturer

Microsemi Corporation

Series

POWER MOS 8™

Packaging

Bulk

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

1200V

Current - Continuous Drain (Id) @ 25°C

31A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

360mOhm @ 25A, 10V

Vgs(th) (Max) @ Id

5V @ 2.5mA

Gate Charge (Qg) (Max) @ Vgs

560nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

14560pF @ 25V

FET Feature

Power Dissipation (Max)

657W (Tc)

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Supplier Device Package

SP1

Package / Case

SP1
