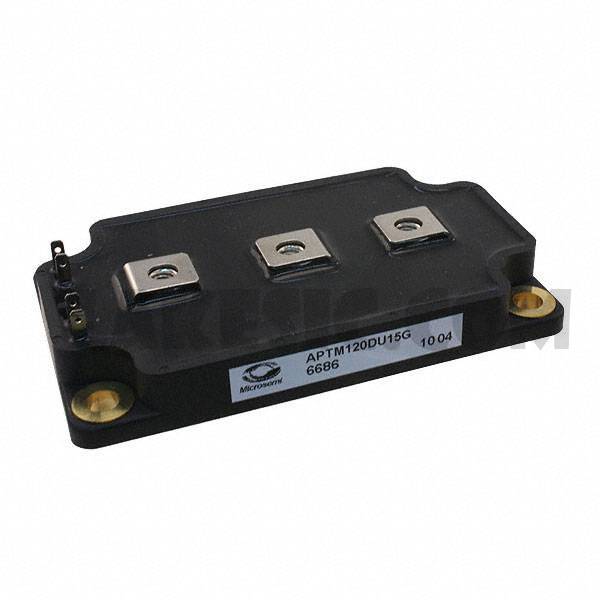

APTM120DU15G

Part NumberAPTM120DU15G

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 1200V 60A SP6

DatasheetAPTM120DU15G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 1200V (1.2kV) 60A 1250W Chassis Mount SP6

To learn about the specification of APTM120DU15G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM120DU15G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM120DU15G.
We are offering APTM120DU15G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM120DU15G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM120DU15G

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

2 N-Channel (Dual)

FET Feature

Standard

Drain to Source Voltage (Vdss)

1200V (1.2kV)

Current - Continuous Drain (Id) @ 25°C

60A

Rds On (Max) @ Id, Vgs

175mOhm @ 30A, 10V

Vgs(th) (Max) @ Id

5V @ 10mA

Gate Charge (Qg) (Max) @ Vgs

748nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

20600pF @ 25V

Power - Max

1250W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP6

Supplier Device Package

SP6
