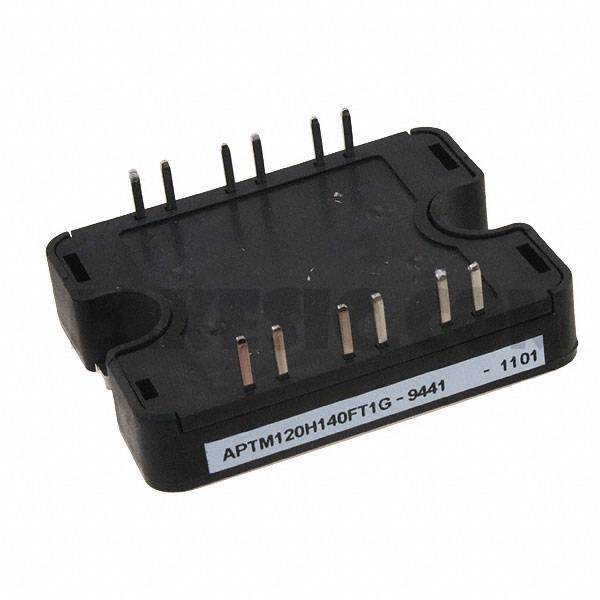

APTM120H140FT1G

Part NumberAPTM120H140FT1G

ManufacturerMicrosemi Corporation

DescriptionMOSFET 4N-CH 1200V 8A SP1

DatasheetAPTM120H140FT1G

Package / CaseSP1

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 4 N-Channel (H-Bridge) 1200V (1.2kV) 8A 208W Chassis Mount SP1

To learn about the specification of APTM120H140FT1G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM120H140FT1G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM120H140FT1G.
We are offering APTM120H140FT1G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM120H140FT1G - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM120H140FT1G

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

4 N-Channel (H-Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

1200V (1.2kV)

Current - Continuous Drain (Id) @ 25°C

Rds On (Max) @ Id, Vgs

1.68Ohm @ 7A, 10V

Vgs(th) (Max) @ Id

5V @ 1mA

Gate Charge (Qg) (Max) @ Vgs

145nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

3812pF @ 25V

Power - Max

208W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP1

Supplier Device Package

SP1
