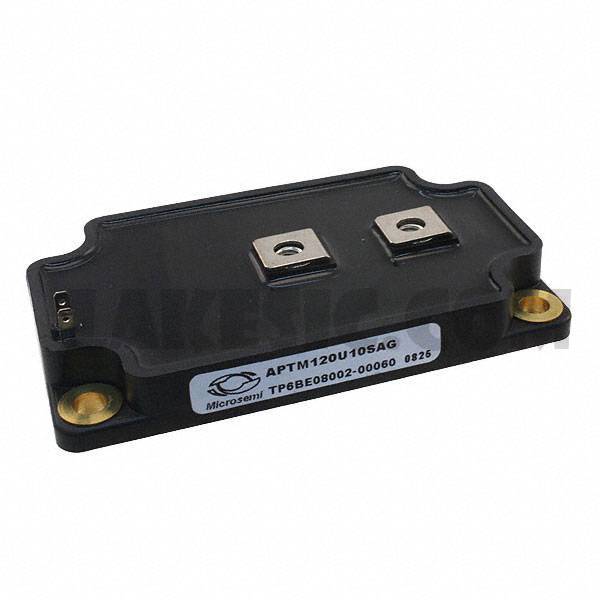

APTM120U10SAG

Part NumberAPTM120U10SAG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 1200V 116A SP6

DatasheetAPTM120U10SAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 1200V 116A (Tc) 3290W (Tc) Chassis Mount SP6

To learn about the specification of APTM120U10SAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM120U10SAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM120U10SAG.
We are offering APTM120U10SAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM120U10SAG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

APTM120U10SAG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

1200V

Current - Continuous Drain (Id) @ 25°C

116A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

120mOhm @ 58A, 10V

Vgs(th) (Max) @ Id

5V @ 20mA

Gate Charge (Qg) (Max) @ Vgs

1100nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

28900pF @ 25V

FET Feature

Power Dissipation (Max)

3290W (Tc)

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Supplier Device Package

SP6

Package / Case

SP6
