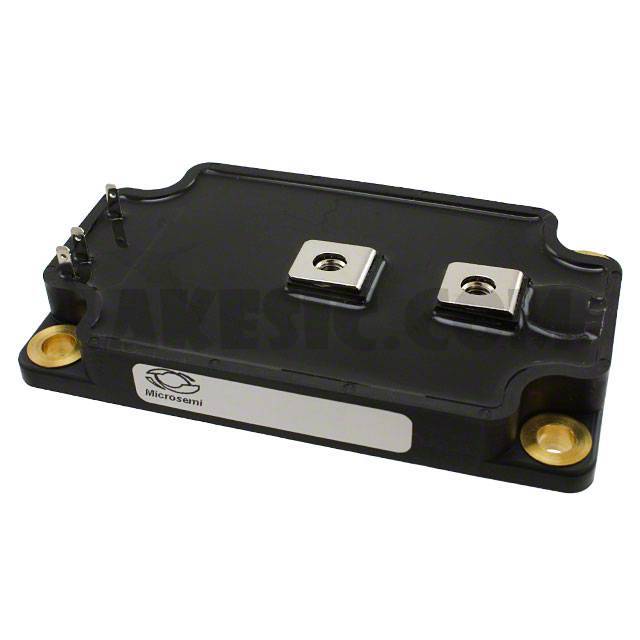

APTM20UM03FAG

Part NumberAPTM20UM03FAG

ManufacturerMicrosemi Corporation

DescriptionMOSFET N-CH 200V 580A SP6

DatasheetAPTM20UM03FAG

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 200V 580A (Tc) 2270W (Tc) Chassis Mount SP6

To learn about the specification of APTM20UM03FAG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM20UM03FAG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM20UM03FAG.
We are offering APTM20UM03FAG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM20UM03FAG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

APTM20UM03FAG

Standard Package

Manufacturer

Microsemi Corporation

Series

POWER MOS 7®

Packaging

Bulk

Part Status

Active

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

200V

Current - Continuous Drain (Id) @ 25°C

580A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

10V

Rds On (Max) @ Id, Vgs

3.6mOhm @ 290A, 10V

Vgs(th) (Max) @ Id

5V @ 15mA

Gate Charge (Qg) (Max) @ Vgs

840nC @ 10V

Vgs (Max)

±30V

Input Capacitance (Ciss) (Max) @ Vds

43300pF @ 25V

FET Feature

Power Dissipation (Max)

2270W (Tc)

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Supplier Device Package

SP6

Package / Case

SP6
