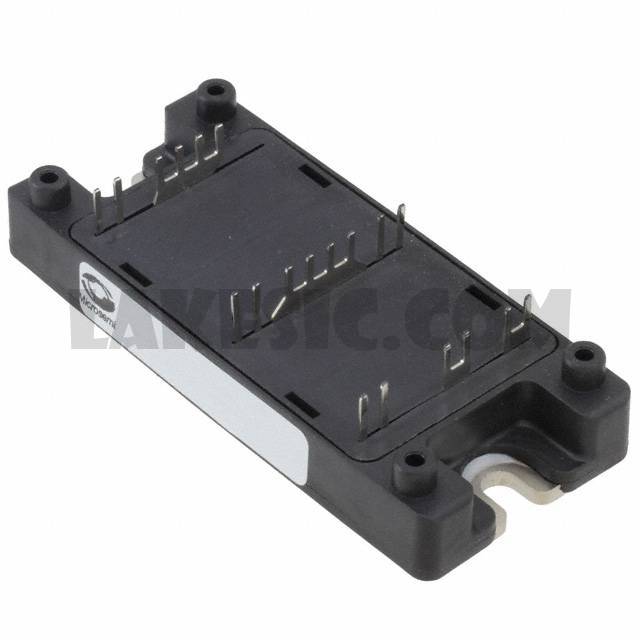

APTM50AM38FTG

Part NumberAPTM50AM38FTG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 500V 90A SP4

DatasheetAPTM50AM38FTG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 500V 90A 694W Chassis Mount SP4

To learn about the specification of APTM50AM38FTG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTM50AM38FTG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTM50AM38FTG.
We are offering APTM50AM38FTG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTM50AM38FTG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTM50AM38FTG

Standard Package

Manufacturer

Microsemi Corporation

Series

POWER MOS 7®

Packaging

Bulk

Part Status

Active

FET Type

2 N-Channel (Half Bridge)

FET Feature

Standard

Drain to Source Voltage (Vdss)

500V

Current - Continuous Drain (Id) @ 25°C

90A

Rds On (Max) @ Id, Vgs

45mOhm @ 45A, 10V

Vgs(th) (Max) @ Id

5V @ 5mA

Gate Charge (Qg) (Max) @ Vgs

246nC @ 10V

Input Capacitance (Ciss) (Max) @ Vds

11200pF @ 25V

Power - Max

694W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP4

Supplier Device Package

SP4
