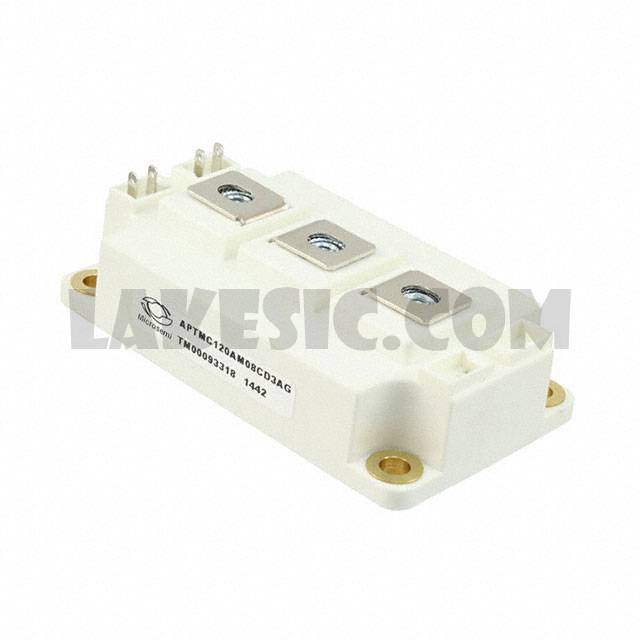

APTMC120AM08CD3AG


APTMC120AM08CD3AG

Part NumberAPTMC120AM08CD3AG

Manufacturer

Description

Datasheet

Package / CaseD-3 Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

APTMC120AM08CD3AG - Product Attributes

Categories Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet
Standard Package1
ManufacturerMicrosemi Corporation
Series-
PackagingBulk
Part StatusActive
FET Type2 N-Channel (Half Bridge)
FET FeatureSilicon Carbide (SiC)
Drain to Source Voltage (Vdss)1200V (1.2kV)
Current - Continuous Drain (Id) @ 25°C250A (Tc)
Rds On (Max) @ Id, Vgs10mOhm @ 200A, 20V
Vgs(th) (Max) @ Id2.2V @ 10mA (Typ)
Gate Charge (Qg) (Max) @ Vgs490nC @ 20V
Input Capacitance (Ciss) (Max) @ Vds9500pF @ 1000V
Power - Max1100W
Operating Temperature-40°C ~ 150°C (TJ)
Mounting TypeChassis Mount
Package / CaseD-3 Module
Supplier Device PackageD3
