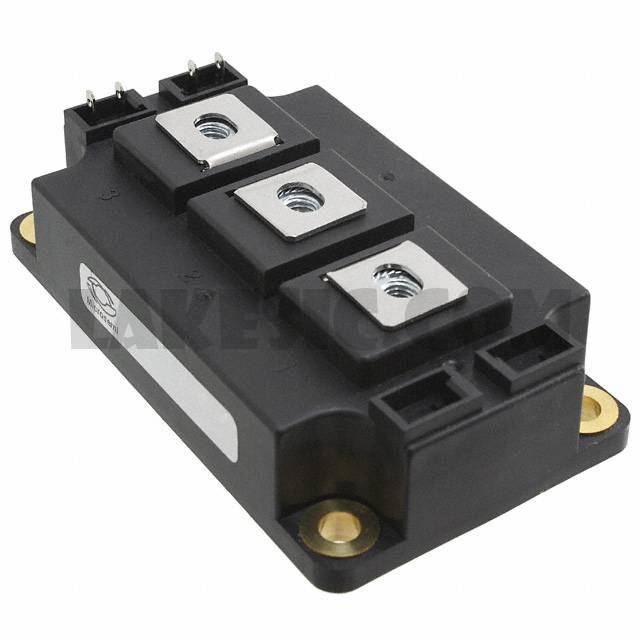

APTMC120AM16CD3AG

Part NumberAPTMC120AM16CD3AG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 1200V 131A D3

DatasheetAPTMC120AM16CD3AG

Package / CaseD-3 Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 131A (Tc) 625W Chassis Mount D3

To learn about the specification of APTMC120AM16CD3AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTMC120AM16CD3AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTMC120AM16CD3AG.
We are offering APTMC120AM16CD3AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTMC120AM16CD3AG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTMC120AM16CD3AG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

2 N-Channel (Half Bridge)

FET Feature

Silicon Carbide (SiC)

Drain to Source Voltage (Vdss)

1200V (1.2kV)

Current - Continuous Drain (Id) @ 25°C

131A (Tc)

Rds On (Max) @ Id, Vgs

20mOhm @ 100A, 20V

Vgs(th) (Max) @ Id

2.2V @ 5mA (Typ)

Gate Charge (Qg) (Max) @ Vgs

246nC @ 20V

Input Capacitance (Ciss) (Max) @ Vds

4750pF @ 1000V

Power - Max

625W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

D-3 Module

Supplier Device Package
