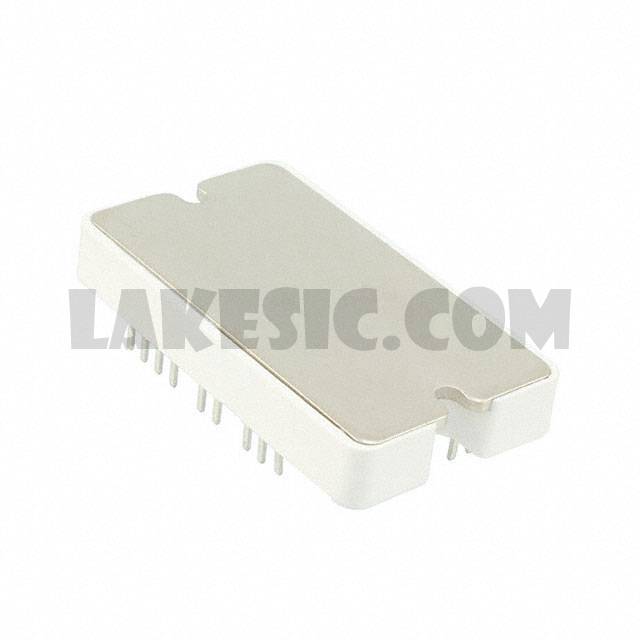

APTMC120AM25CT3AG

Part NumberAPTMC120AM25CT3AG

ManufacturerMicrosemi Corporation

DescriptionMOSFET 2N-CH 1200V 105A SP3F

DatasheetAPTMC120AM25CT3AG

Package / CaseSP3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Half Bridge) 1200V (1.2kV) 113A (Tc) 500W Chassis Mount SP3

To learn about the specification of APTMC120AM25CT3AG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTMC120AM25CT3AG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTMC120AM25CT3AG.
We are offering APTMC120AM25CT3AG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTMC120AM25CT3AG - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays

Datasheet

APTMC120AM25CT3AG

Standard Package

Manufacturer

Microsemi Corporation

Series

Packaging

Bulk

Part Status

Active

FET Type

2 N-Channel (Half Bridge)

FET Feature

Silicon Carbide (SiC)

Drain to Source Voltage (Vdss)

1200V (1.2kV)

Current - Continuous Drain (Id) @ 25°C

113A (Tc)

Rds On (Max) @ Id, Vgs

25mOhm @ 80A, 20V

Vgs(th) (Max) @ Id

2.2V @ 4mA (Typ)

Gate Charge (Qg) (Max) @ Vgs

197nC @ 20V

Input Capacitance (Ciss) (Max) @ Vds

3800pF @ 1000V

Power - Max

500W

Operating Temperature

-40°C ~ 150°C (TJ)

Mounting Type

Chassis Mount

Package / Case

SP3

Supplier Device Package

SP3
