ATCA-02-290M-H

Part NumberATCA-02-290M-H

ManufacturerAbracon LLC

DescriptionFIXED IND 29UH 4A 20 MOHM TH

DatasheetATCA Series Datasheet

Package / CaseRadial, Horizontal (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

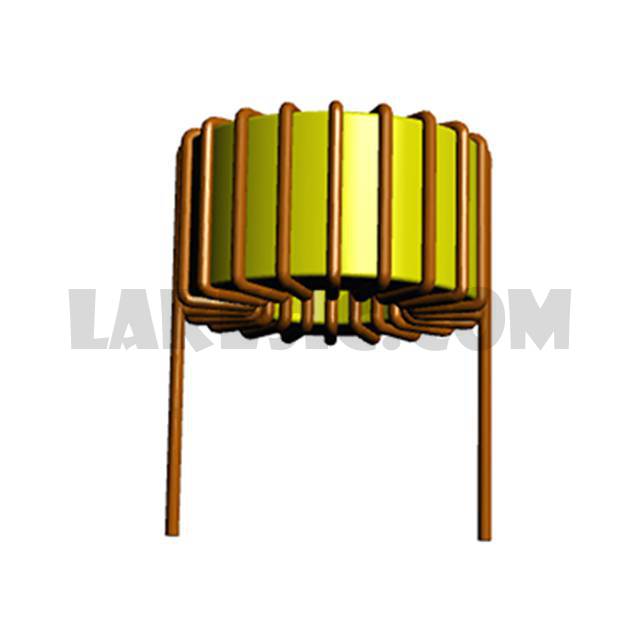

Detailed Description29µH Unshielded Toroidal Inductor 4A 20mOhm Max Radial, Horizontal (Open)

To learn about the specification of ATCA-02-290M-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ATCA-02-290M-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ATCA-02-290M-H.
We are offering ATCA-02-290M-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ATCA-02-290M-H - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

ATCA Series Datasheet

Standard Package

100

Manufacturer

Abracon LLC

Series

ATCA

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

29µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

20mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 105°C

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Horizontal (Open)

Size / Dimension

0.866" Dia (22.00mm)

Height - Seated (Max)

0.492" (12.50mm)
