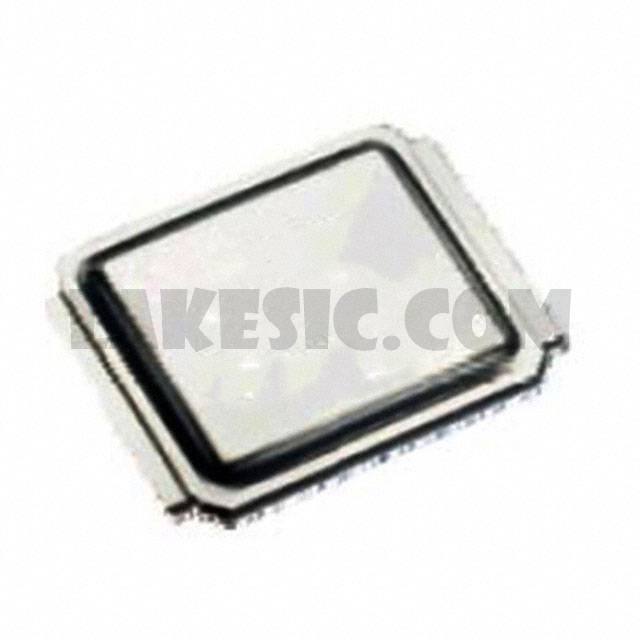

AUIRF8736M2TR

AUIRF8736M2TR

Part NumberAUIRF8736M2TR

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 40V 137A AUTO

DatasheetAUIRF8736M2TR

Package / CaseDirectFET™ Isometric M4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 27A (Ta), 137A (Tc) 2.5W (Ta), 63W (Tc) Surface Mount DIRECTFET™ M4

To learn about the specification of AUIRF8736M2TR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AUIRF8736M2TR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AUIRF8736M2TR.
We are offering AUIRF8736M2TR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AUIRF8736M2TR - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	AUIRF8736M2TR
Standard Package	4800
Manufacturer	Infineon Technologies
Series	HEXFET®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	27A (Ta), 137A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.9mOhm @ 85A, 10V
Vgs(th) (Max) @ Id	3.9V @ 150µA
Gate Charge (Qg) (Max) @ Vgs	204nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	6867pF @ 25V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 63W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	DIRECTFET™ M4
Package / Case	DirectFET™ Isometric M4
