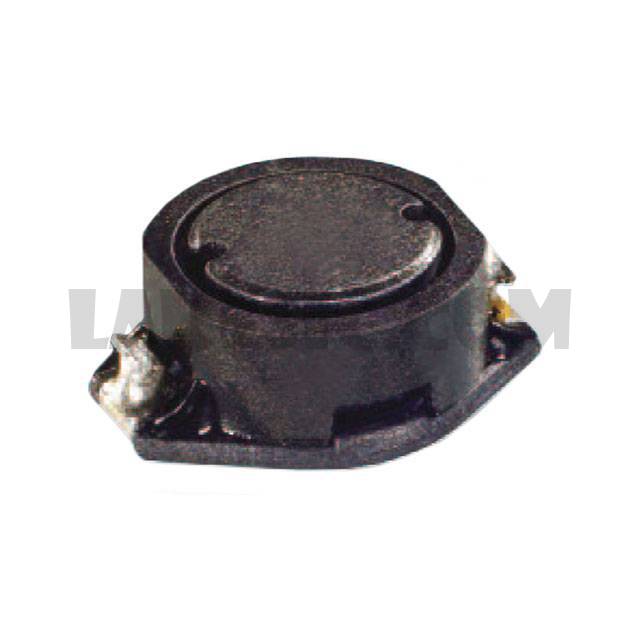

AX1005-102K

Part NumberAX1005-102K

ManufacturerTriad Magnetics

DescriptionFIXED IND 1MH 220MA 3.2 OHM SMD

DatasheetAX1005-102K Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1mH Shielded Wirewound Inductor 220mA 3.2Ohm Max Nonstandard

To learn about the specification of AX1005-102K, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AX1005-102K with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AX1005-102K.
We are offering AX1005-102K for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AX1005-102K - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AX1005-102K Drawing

Standard Package

600

Manufacturer

Triad Magnetics

Series

AX1005

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

1mH

Tolerance

±10%

Current Rating (Amps)

220mA

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

3.2Ohm Max

Q @ Freq

70 @ 100kHz

Frequency - Self Resonant

2MHz

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

SMD

Size / Dimension

0.500" L x 0.394" W (12.70mm x 10.00mm)

Height - Seated (Max)

0.193" (4.90mm)
