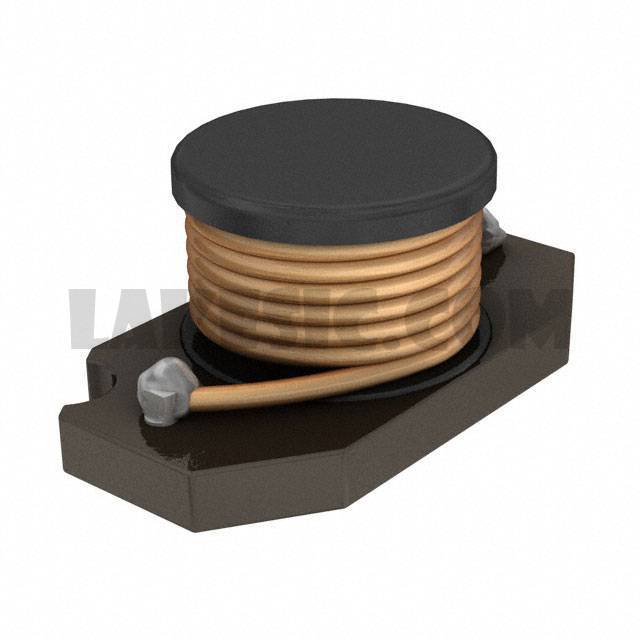

AX97-101R0

Part NumberAX97-101R0

ManufacturerTriad Magnetics

DescriptionFIXED IND 1UH 2.9A 30 MOHM

DatasheetAX97 Series Drawing

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1µH Unshielded Wirewound Inductor 2.9A 30mOhm Max Nonstandard

To learn about the specification of AX97-101R0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AX97-101R0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AX97-101R0.
We are offering AX97-101R0 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

AX97-101R0 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

AX97 Series Drawing

Standard Package

500

Manufacturer

Triad Magnetics

Series

AX97

Packaging

Bulk

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

1µH

Tolerance

±20%

Current Rating (Amps)

2.9A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

30mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 85°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

SMD

Size / Dimension

0.287" L x 0.188" W (7.30mm x 4.78mm)

Height - Seated (Max)

0.127" (3.23mm)
