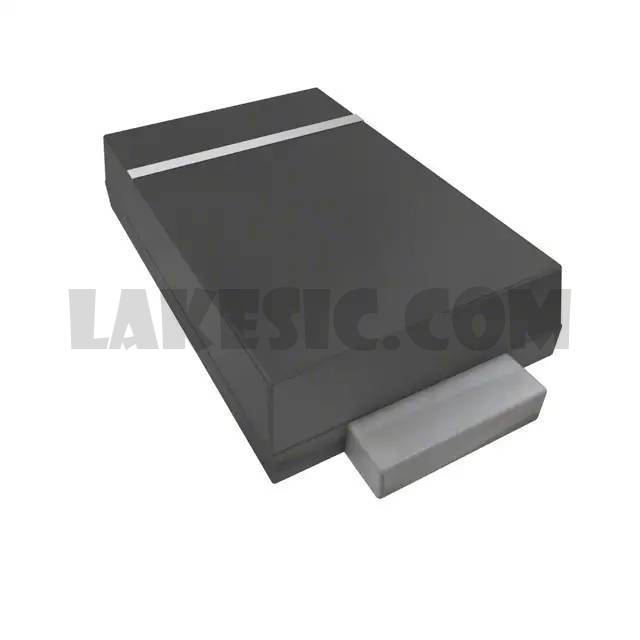

B130AF-13

B130AF-13

Part NumberB130AF-13

ManufacturerDiodes Incorporated

DescriptionDIODE SCHOTTKY 30V 1A SMAF

DatasheetB120AF - B140AF

Package / CaseDO-221AC, SMA Flat Leads

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1A Surface Mount SMAF

To learn about the specification of B130AF-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B130AF-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B130AF-13.
We are offering B130AF-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B130AF-13 - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	B120AF - B140AF
Standard Package	10000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	500mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	100µA @ 30V
Capacitance @ Vr, F	50pF @ 4V, 1MHz
Mounting Type	Surface Mount
Package / Case	DO-221AC, SMA Flat Leads
Supplier Device Package	SMAF
Operating Temperature - Junction	-55°C ~ 150°C
