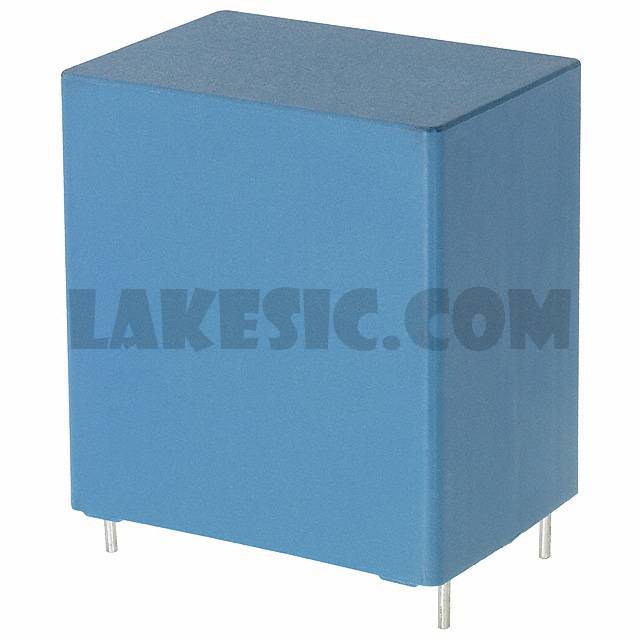

Categories	Capacitors / Film Capacitors
Datasheet	B32774,76,78 Series
Standard Package	100
Manufacturer	EPCOS (TDK)
Series	B32776
Packaging	Bulk
Part Status	Active
Capacitance	30µF
Tolerance	±5%
Voltage Rating - AC	-
Voltage Rating - DC	800V
Dielectric Material	Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance)	3.5 mOhms
Operating Temperature	-40°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.654" L x 1.181" W (42.00mm x 30.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Termination	PC Pins
Lead Spacing	1.476" (37.50mm)
Applications	DC Link, DC Filtering
Ratings	-
Features	Long Life

B32776T4126K000	EPCOS (TDK), 12µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32776G8206K000	EPCOS (TDK), 20µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32776	View
B32776G1805K000	EPCOS (TDK), 8µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32776	View
B32778G8456K000	EPCOS (TDK), 45µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32778	View
B32776T0395K000	EPCOS (TDK), 3.9µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32776	View
B32778G0306J000	EPCOS (TDK), 30µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32778	View
B32774D0505K000	EPCOS (TDK), 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32774	View
B32776E8306K000	EPCOS (TDK), 30µF Film Capacitor 800V Polypropylene (PP), Metallized Radial, B32776	View
B32774D1155K000	EPCOS (TDK), 1.5µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32774	View
B32778G1256K000	EPCOS (TDK), 25µF Film Capacitor 1300V (1.3kV) Polypropylene (PP), Metallized Radial, B32778	View
B32776G4406K000	EPCOS (TDK), 40µF Film Capacitor 450V Polypropylene (PP), Metallized Radial, B32776	View
B32776T0505K000	EPCOS (TDK), 5µF Film Capacitor 1100V (1.1kV) Polypropylene (PP), Metallized Radial, B32776	View

B32776G8306J000

Part NumberB32776G8306J000
