Categories	Capacitors / Film Capacitors
Datasheet	B32922H/J - B32926H/J
Standard Package	260
Manufacturer	EPCOS (TDK)
Series	B32923
Packaging	Bulk
Part Status	Active
Capacitance	2.2µF
Tolerance	±20%
Voltage Rating - AC	305V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-40°C ~ 110°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	1.043" L x 0.571" W (26.50mm x 14.50mm)
Height - Seated (Max)	1.169" (29.70mm)
Termination	PC Pins
Lead Spacing	0.886" (22.50mm)
Applications	Automotive; EMI, RFI Suppression
Ratings	AEC-Q200, X2
Features	-

B32926H3225M	EPCOS (TDK), 2.2µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32926	View
B32924H3225M	EPCOS (TDK), 2.2µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32924	View
B32924J3155K	EPCOS (TDK), 1.5µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32924	View
B32924H3155M	EPCOS (TDK), 1.5µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32924	View
B32924H3335M	EPCOS (TDK), 3.3µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32924	View
B32924J3335K	EPCOS (TDK), 3.3µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32924	View
B32922H3104M	EPCOS (TDK), 0.1µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32922	View
B32926H3106M	EPCOS (TDK), 10µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32926	View
B32926H3156M	EPCOS (TDK), 15µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32926	View
B32923H3824M	EPCOS (TDK), 0.82µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32923	View
B32926H3685M	EPCOS (TDK), 6.8µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32926	View
B32924H3105M	EPCOS (TDK), 1µF Film Capacitor 305V 630V Polypropylene (PP), Metallized Radial, B32924	View

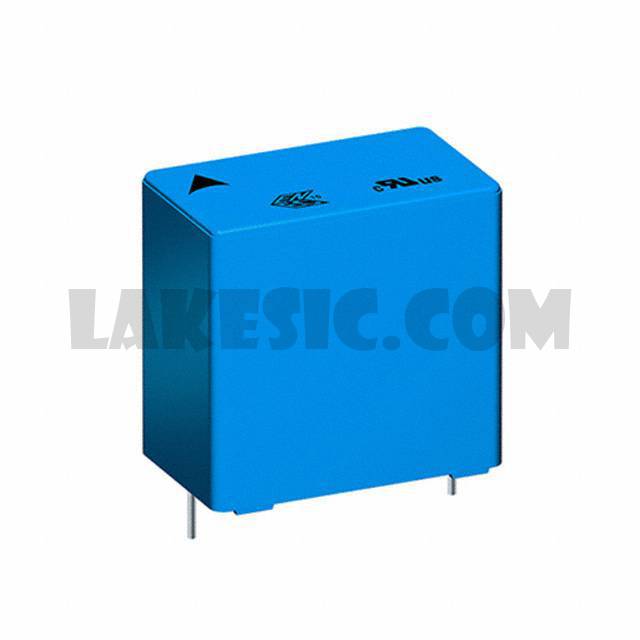

B32923H3225M

Part NumberB32923H3225M
