B78108E1222K009
B78108E1222K009

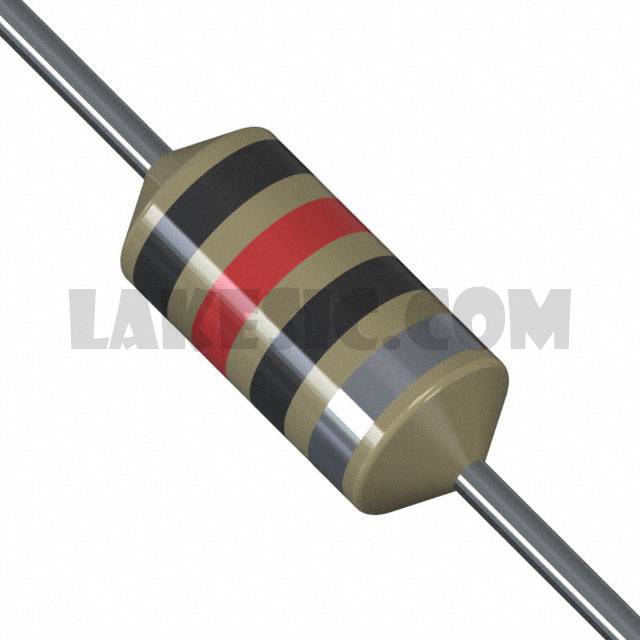

Part Number B78108E1222K009 Description FIXED IND 2.2UH 3.4A 57 MOHM TH Package / Case AxialUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 2.2µH Unshielded Wirewound Inductor 3.4A 57mOhm Max Axial
To learn about the specification of B78108E1222K009, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B78108E1222K009 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B78108E1222K009.
We are offering B78108E1222K009 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B78108E1222K009 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B78108E, B78148E Series Standard Package 2500 Manufacturer EPCOS (TDK) Series B78108E Packaging Tape & Box (TB) Part Status Active Type Wirewound Material - Core Ferrite Inductance 2.2µH Tolerance ±10% Current Rating (Amps) 3.4A Current - Saturation 4A Shielding Unshielded DC Resistance (DCR) 57mOhm Max Q @ Freq 50 @ 7.96MHz Frequency - Self Resonant 150MHz Ratings - Operating Temperature -55°C ~ 125°C Inductance Frequency - Test 1MHz Features - Mounting Type Through Hole Package / Case Axial Supplier Device Package Axial Size / Dimension 0.157" Dia x 0.374" L (4.00mm x 9.50mm) Height - Seated (Max) -
