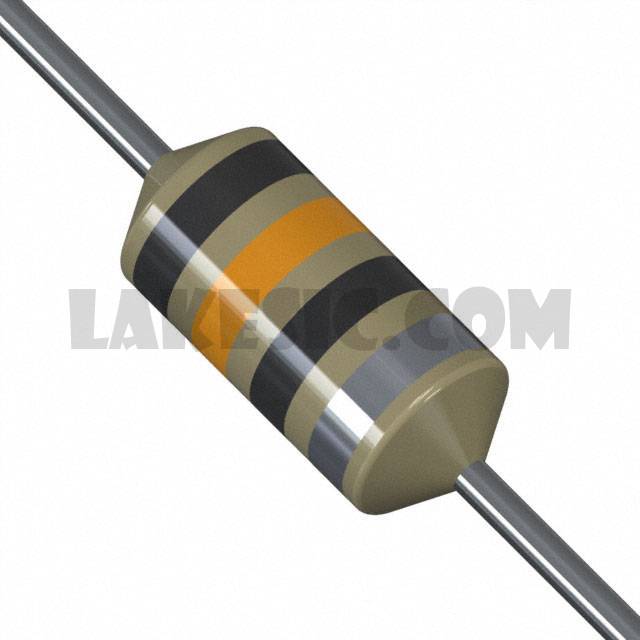

B78108E1332K009


B78108E1332K009

Part NumberB78108E1332K009

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B78108E1332K009 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package2500
ManufacturerEPCOS (TDK)
SeriesB78108E
PackagingTape & Box (TB)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance3.3µH
Tolerance±10%
Current Rating (Amps)3.05A
Current - Saturation3.25A
ShieldingUnshielded
DC Resistance (DCR)73mOhm Max
Q @ Freq45 @ 7.96MHz
Frequency - Self Resonant75MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1MHz
Features-
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max)-
