Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B78108E, B78148E Series
Standard Package	2500
Manufacturer	EPCOS (TDK)
Series	B78108E
Packaging	Tape & Box (TB)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	4.7µH
Tolerance	±10%
Current Rating (Amps)	2.75A
Current - Saturation	2.7A
Shielding	Unshielded
DC Resistance (DCR)	85mOhm Max
Q @ Freq	45 @ 7.96MHz
Frequency - Self Resonant	35MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	1MHz
Features	-
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.157" Dia x 0.374" L (4.00mm x 9.50mm)
Height - Seated (Max)	-

B78108E1152K000	EPCOS (TDK), 1.5µH Unshielded Wirewound Inductor 3.8A 47mOhm Max Axial, BC+	View
B78108E1221M009	EPCOS (TDK), 220nH Unshielded Wirewound Inductor 5.9A 19mOhm Max Axial, B78108E	View
B78148S1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 130mA 14Ohm Max Radial, BC	View
B78108E1151M000	EPCOS (TDK), 150nH Unshielded Wirewound Inductor 6.5A 17mOhm Max Axial, BC+	View
B78148S1475J000	EPCOS (TDK), 4.7mH Unshielded Wirewound Inductor 55mA 78Ohm Max Radial, BC	View
B78108E1682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.45A 105mOhm Max Axial, BC+	View
B78148E1331M000	EPCOS (TDK), 330nH Unshielded Wirewound Inductor 5.3A 23mOhm Max Radial, BC+	View
B78148E1472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 2.75A 85mOhm Max Radial, BC+	View
B78108S1823J000	EPCOS (TDK), 82µH Unshielded Wirewound Inductor 390mA 1.54Ohm Max Axial, BC	View
B78108E1101M009	EPCOS (TDK), 100nH Unshielded Wirewound Inductor 7.3A 15mOhm Max Axial, B78108E	View
B78108S1393K000	EPCOS (TDK), 39µH Unshielded Wirewound Inductor 470mA 1.02Ohm Max Axial, BC	View
B78108E1153K000	EPCOS (TDK), 15µH Unshielded Wirewound Inductor 1.6A 230mOhm Max Axial, BC+	View

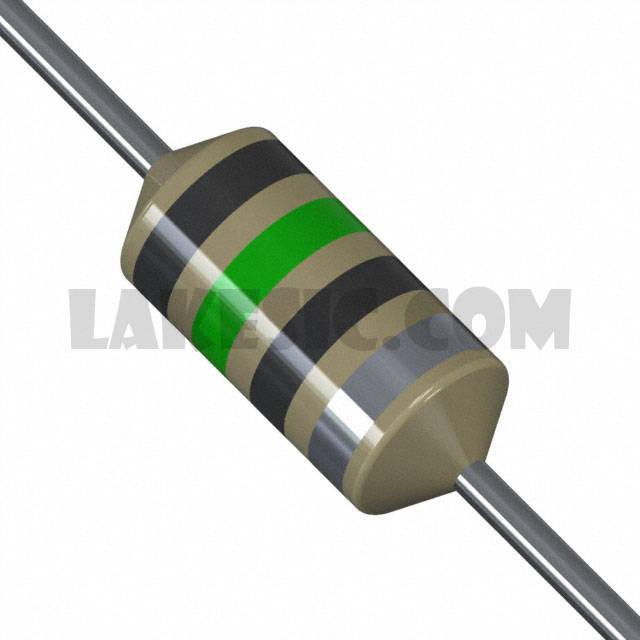

B78108E1472K009

Part NumberB78108E1472K009
