Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B78108S, B78148S Series
Standard Package	5000
Manufacturer	EPCOS (TDK)
Series	BC
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1.2µH
Tolerance	±10%
Current Rating (Amps)	1.15A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	180mOhm Max
Q @ Freq	55 @ 7.96MHz
Frequency - Self Resonant	185MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	7.96MHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	Axial
Size / Dimension	0.157" Dia x 0.362" L (4.00mm x 9.20mm)
Height - Seated (Max)	-

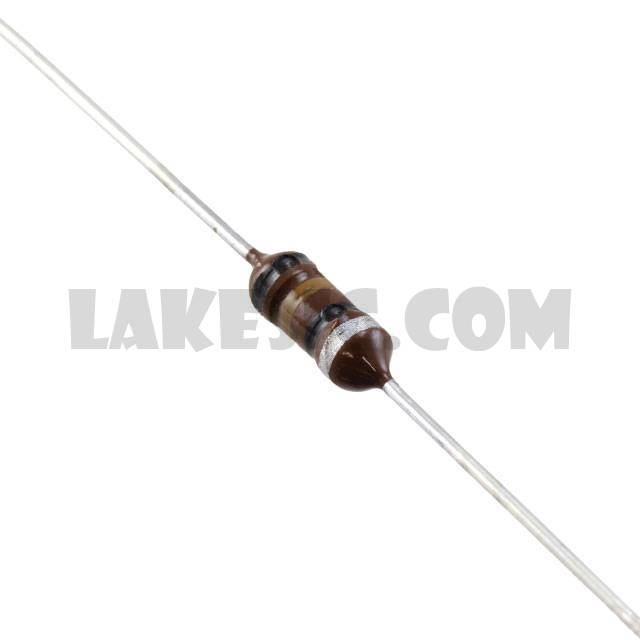

B78108S1122K000	EPCOS (TDK), 1.2µH Unshielded Wirewound Inductor 1.15A 180mOhm Max Axial, BC	View
