B78148E1101M000
B78148E1101M000

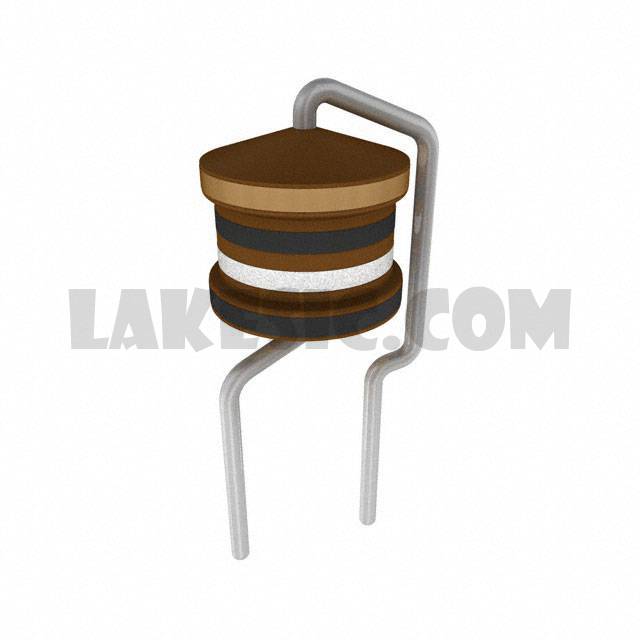

Part Number B78148E1101M000
Description FIXED IND 100NH 7.3A 15 MOHM TH
Package / Case Radial
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description 100nH Unshielded Wirewound Inductor 7.3A 15mOhm Max Radial
To learn about the specification of B78148E1101M000, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B78148E1101M000 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B78148E1101M000.
We are offering B78148E1101M000 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B78148E1101M000 - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet B78108E, B78148E Series
Standard Package 1
Manufacturer EPCOS (TDK)
Series BC+
Packaging Cut Tape (CT)
Part Status Active
Type Wirewound
Material - Core Ferrite
Inductance 100nH
Tolerance ±20%
Current Rating (Amps) 7.3A
Current - Saturation 17A
Shielding Unshielded
DC Resistance (DCR) 15mOhm Max
Q @ Freq 50 @ 7.96MHz
Frequency - Self Resonant 700MHz
Ratings -
Operating Temperature -55°C ~ 125°C
Inductance Frequency - Test 1MHz
Mounting Type Through Hole
Package / Case Radial
Supplier Device Package -
Size / Dimension 0.157" Dia (4.00mm)
Height - Seated (Max) 0.453" (11.50mm)
