Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144A Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active

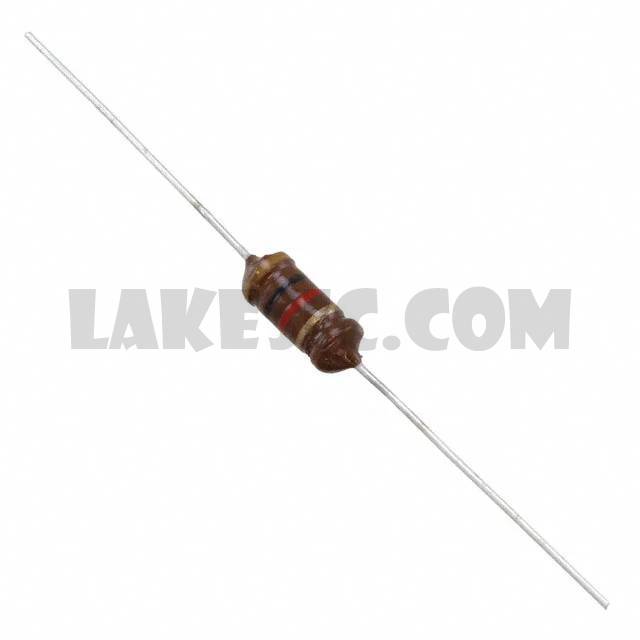

Type	Wirewound
Material - Core	Ferrite
Inductance	1mH
Tolerance	±5%
Current Rating (Amps)	200mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	3.8Ohm Max
Q @ Freq	60 @ 252kHz
Frequency - Self Resonant	1.2MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole
Package / Case	Axial
Supplier Device Package	-
Size / Dimension	0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)	-
