Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82144B2 Series
Standard Package	1
Manufacturer	EPCOS (TDK)
Series	LBC
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	27µH
Tolerance	±10%
Current Rating (Amps)	2A
Current - Saturation	1.8A
Shielding	Unshielded
DC Resistance (DCR)	200mOhm Max
Q @ Freq	40 @ 252kHz
Frequency - Self Resonant	9.2MHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Type	Through Hole

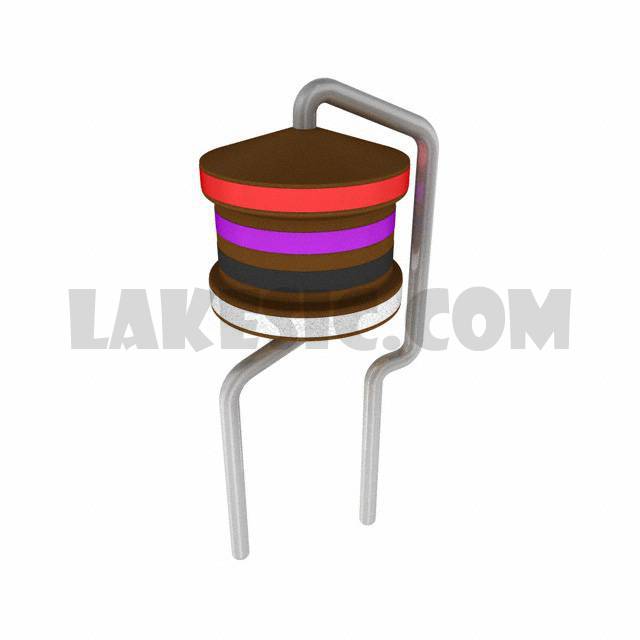

Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.256" Dia (6.50mm)
Height - Seated (Max)	0.551" (14.00mm)

B82144B1105J000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 280mA 4.2Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2224J000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 900mA 1.01Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2682K000	EPCOS (TDK), 6.8µH Unshielded Wirewound Inductor 2.75A 95mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2683J000	EPCOS (TDK), 68µH Unshielded Wirewound Inductor 1.5A 350mOhm Max Axial, LBC	View
B82144B2103K000	EPCOS (TDK), 10µH Unshielded Wirewound Inductor 2.45A 120mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2223K000	EPCOS (TDK), 22µH Unshielded Wirewound Inductor 2.1A 175mOhm Max Radial, Vertical Cylinder, LBC	View
B82144F2334J000	EPCOS (TDK), 330µH Unshielded Wirewound Inductor 700mA 1.53Ohm Max Axial, LBC	View
B82144F2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Axial, LBC	View
B82144A2473J000	EPCOS (TDK), 47µH Unshielded Wirewound Inductor 800mA 500mOhm Max Axial, LBC	View
B82144B1335J000	EPCOS (TDK), 3.3mH Unshielded Wirewound Inductor 150mA 13.8Ohm Max Radial, Vertical Cylinder, LBC	View
B82144B2102K000	EPCOS (TDK), 1µH Unshielded Wirewound Inductor 4.45A 43mOhm Max Radial, Vertical Cylinder, LBC	View
B82144B2183K000	EPCOS (TDK), 18µH Unshielded Wirewound Inductor 2.2A 155mOhm Max Radial, Vertical Cylinder, LBC	View

B82144B2273K000

Part NumberB82144B2273K000
