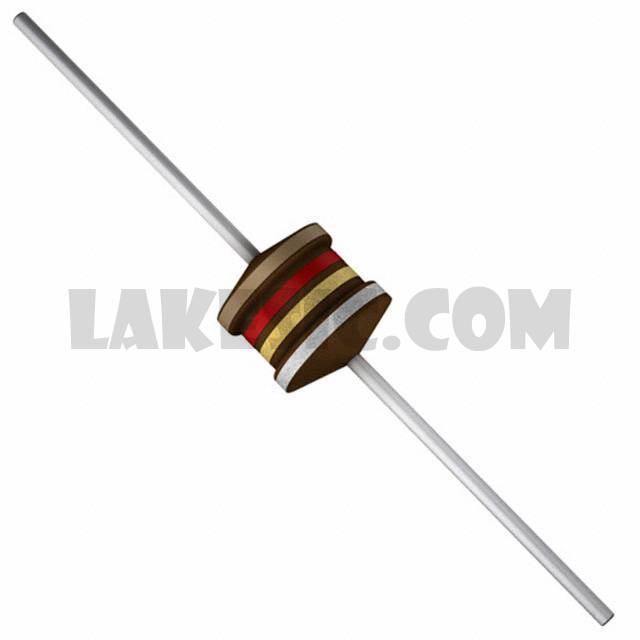

B82144F2102K000


B82144F2102K000

Part NumberB82144F2102K000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144F2102K000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1500
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance1µH
Tolerance±10%
Current Rating (Amps)4.45A
Current - Saturation7.7A
ShieldingUnshielded
DC Resistance (DCR)43mOhm Max
Q @ Freq50 @ 2.52MHz
Frequency - Self Resonant200MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test1MHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device PackageAxial
Size / Dimension0.256" Dia x 0.362" L (6.50mm x 9.20mm)
Height - Seated (Max)-
