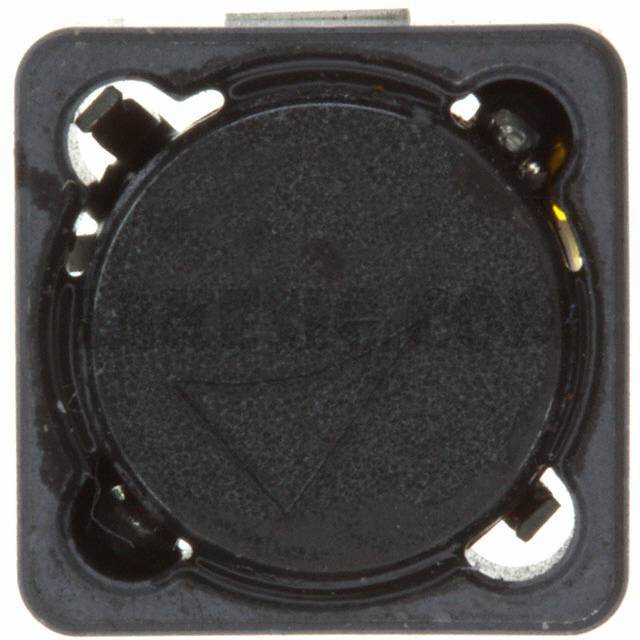

B82464Z4223M

Part NumberB82464Z4223M

ManufacturerEPCOS (TDK)

DescriptionFIXED IND 22UH 2.25A 52 MOHM SMD

DatasheetB82464Z4 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Wirewound Inductor 2.25A 52mOhm Max Nonstandard

To learn about the specification of B82464Z4223M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82464Z4223M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82464Z4223M.
We are offering B82464Z4223M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82464Z4223M - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

B82464Z4 Series

Standard Package

Manufacturer

EPCOS (TDK)

Series

B82464Z4

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

22µH

Tolerance

±20%

Current Rating (Amps)

2.25A

Current - Saturation

2.5A

Shielding

Shielded

DC Resistance (DCR)

52mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.409" L x 0.409" W (10.40mm x 10.40mm)

Height - Seated (Max)

0.189" (4.80mm)
