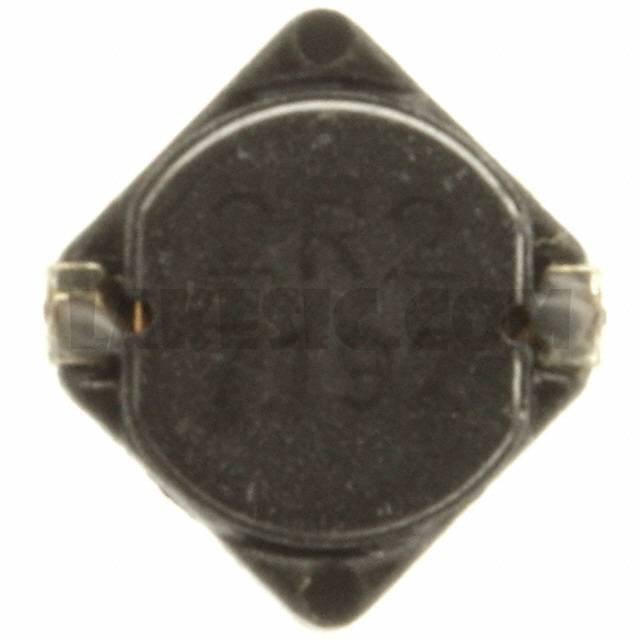

B82470A1222M

Part NumberB82470A1222M

ManufacturerEPCOS (TDK)

DescriptionFIXED IND 2.2UH 1.35A 90 MOHM

DatasheetB82470-A1-M Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.2µH Unshielded Wirewound Inductor 1.35A 90mOhm Max Nonstandard

To learn about the specification of B82470A1222M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82470A1222M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82470A1222M.
We are offering B82470A1222M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82470A1222M - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

B82470-A1-M Series

Standard Package

2000

Manufacturer

EPCOS (TDK)

Series

B82470-A1-M

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Type

Wirewound

Material - Core

Ferrite

Inductance

2.2µH

Tolerance

±20%

Current Rating (Amps)

1.35A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

90mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.189" L x 0.189" W (4.80mm x 4.80mm)

Height - Seated (Max)

0.047" (1.20mm)
