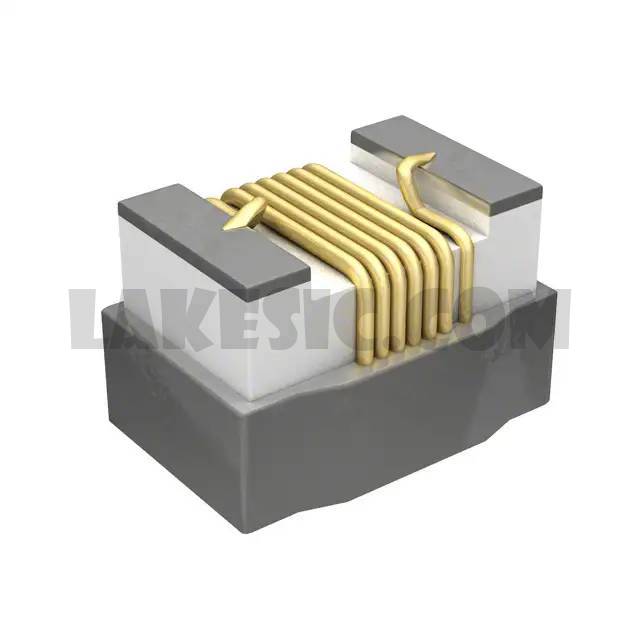

B82498F3220J11

Part NumberB82498F3220J11

ManufacturerEPCOS (TDK)

DescriptionFIXED IND 22NH 700MA 80 MOHM SMD

DatasheetB82498F Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22nH Unshielded Wirewound Inductor 700mA 80mOhm Max Nonstandard

To learn about the specification of B82498F3220J11, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82498F3220J11 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82498F3220J11.
We are offering B82498F3220J11 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82498F3220J11 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

B82498F Series Datasheet

Standard Package

6000

Manufacturer

EPCOS (TDK)

Series

SIMID

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ceramic

Inductance

22nH

Tolerance

±5%

Current Rating (Amps)

700mA

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

80mOhm Max

Q @ Freq

60 @ 500MHz

Frequency - Self Resonant

2.5GHz

Ratings

Operating Temperature

-55°C ~ 125°C

Inductance Frequency - Test

250MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

0805 (2012 Metric)

Size / Dimension

0.091" L x 0.067" W (2.30mm x 1.70mm)

Height - Seated (Max)

0.055" (1.40mm)
