Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	B82498F Series Datasheet
Standard Package	3000
Manufacturer	EPCOS (TDK)
Series	SIMID
Packaging	Tape & Reel (TR)
Part Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	2.7nH
Tolerance	±10%
Current Rating (Amps)	1A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	30mOhm Max
Q @ Freq	50 @ 1.5GHz
Frequency - Self Resonant	9GHz
Ratings	-
Operating Temperature	-55°C ~ 125°C
Inductance Frequency - Test	250MHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max)	0.055" (1.40mm)

B82442H1104J000	EPCOS (TDK), 100µH Unshielded Wirewound Inductor 350mA 1.28Ohm Max 2-SMD, J-Lead, SIMID	View
B82498F3121J000	EPCOS (TDK), 120nH Unshielded Wirewound Inductor 440mA 310mOhm Max Nonstandard, SIMID	View
B82498F3560J000	EPCOS (TDK), 56nH Unshielded Wirewound Inductor 600mA 140mOhm Max Nonstandard, SIMID	View
B82442H1153K000	EPCOS (TDK), 15µH Unshielded Wirewound Inductor 810mA 240mOhm Max 2-SMD, J-Lead, SIMID	View
B82422H1332J000	EPCOS (TDK), 3.3µH Unshielded Wirewound Inductor 770mA 180mOhm Max 2-SMD, J-Lead, SIMID	View
B82422A1562J100	EPCOS (TDK), 5.6µH Unshielded Wirewound Inductor 140mA 2.6Ohm Max 2-SMD, J-Lead, SIMID	View
B82422T1472K000	EPCOS (TDK), 4.7µH Unshielded Wirewound Inductor 220mA 1.5Ohm Max 2-SMD, J-Lead, SIMID	View
B82442H1224K000	EPCOS (TDK), 220µH Unshielded Wirewound Inductor 240mA 2.72Ohm Max 2-SMD, J-Lead, SIMID	View
B82498F3101J000	EPCOS (TDK), 100nH Unshielded Wirewound Inductor 450mA 280mOhm Max Nonstandard, SIMID	View
B82442H1105K000	EPCOS (TDK), 1mH Unshielded Wirewound Inductor 120mA 12Ohm Max 2-SMD, J-Lead, SIMID	View
B82496C3229Z000	EPCOS (TDK), 2.2nH Unshielded Wirewound Inductor 1.5A 35mOhm Max 0603 (1608 Metric), SIMID	View
B82496C3390J000	EPCOS (TDK), 39nH Unshielded Wirewound Inductor 300mA 800mOhm Max 0603 (1608 Metric), SIMID	View

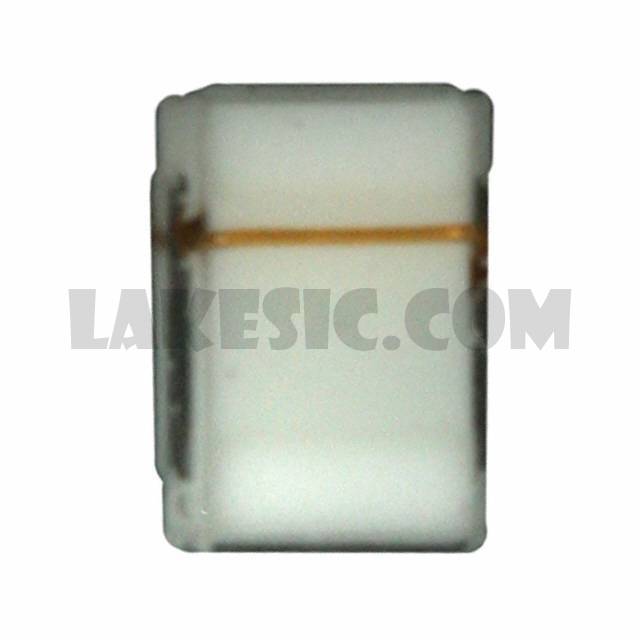

B82498F3279K000

Part NumberB82498F3279K000
