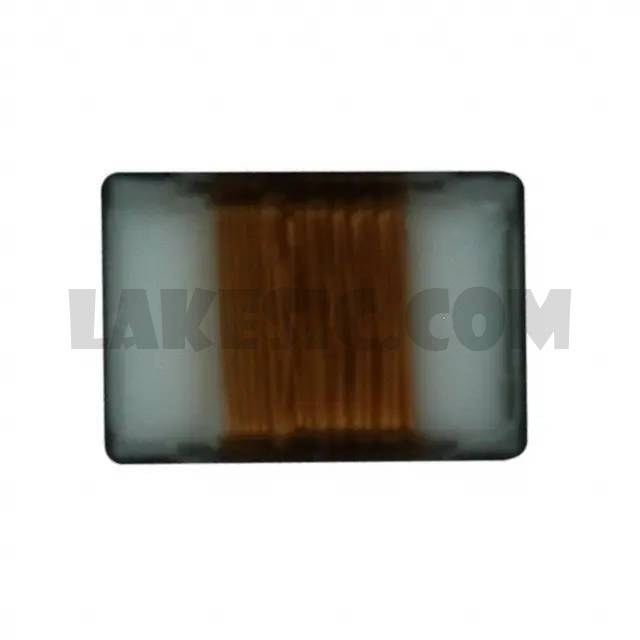

B82498F3821J000


B82498F3821J000

Part NumberB82498F3821J000

Manufacturer

Description

Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82498F3821J000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1
ManufacturerEPCOS (TDK)
SeriesSIMID
PackagingCut Tape (CT)
Part StatusActive
TypeWirewound
Material - CoreCeramic
Inductance820nH
Tolerance±5%
Current Rating (Amps)180mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)1.9Ohm Max
Q @ Freq23 @ 50MHz
Frequency - Self Resonant300MHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test25MHz
Mounting TypeSurface Mount
Package / CaseNonstandard
Supplier Device Package0805 (2012 Metric)
Size / Dimension0.091" L x 0.067" W (2.30mm x 1.70mm)
Height - Seated (Max)0.055" (1.40mm)
