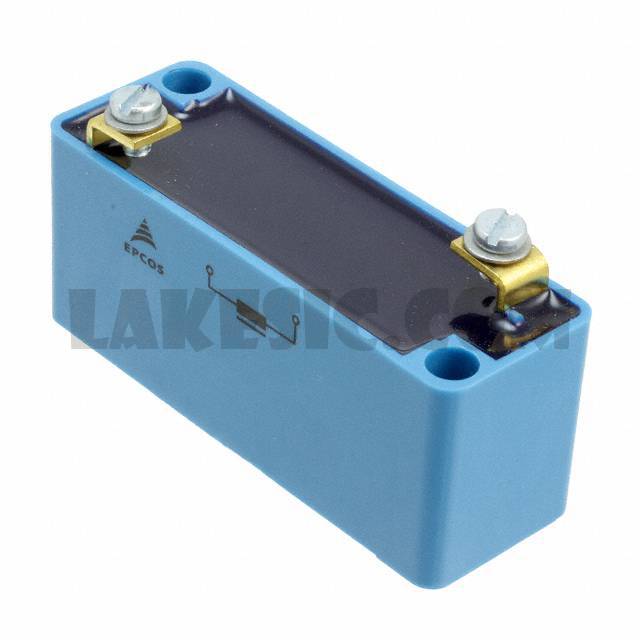

B82504WA16

Part NumberB82504WA16

ManufacturerEPCOS (TDK)

DescriptionCMC 120UH 16A 2LN CHAS MT

DatasheetB82504W Series

Package / Case-

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description120µH @ 100kHz 2 Line Common Mode Choke Chassis Mount 16A DCR 19mOhm (Typ)

To learn about the specification of B82504WA16, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82504WA16 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82504WA16.
We are offering B82504WA16 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

B82504WA16 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

B82504W Series

Standard Package

Manufacturer

EPCOS (TDK)

Series

B82504

Packaging

Tray

Part Status

Obsolete

Filter Type

Power Line

Number of Lines

Inductance @ Frequency

120µH @ 100kHz

Current Rating (Max)

16A

DC Resistance (DCR) (Max)

19mOhm (Typ)

Voltage Rating - DC

600V

Voltage Rating - AC

500V

Operating Temperature

Ratings

Approvals

Features

Mounting Type

Chassis Mount

Size / Dimension

3.071" L x 1.102" W (78.00mm x 28.00mm)

Height (Max)

1.457" (37.00mm)

Package / Case
