B82720S2301N040
B82720S2301N040

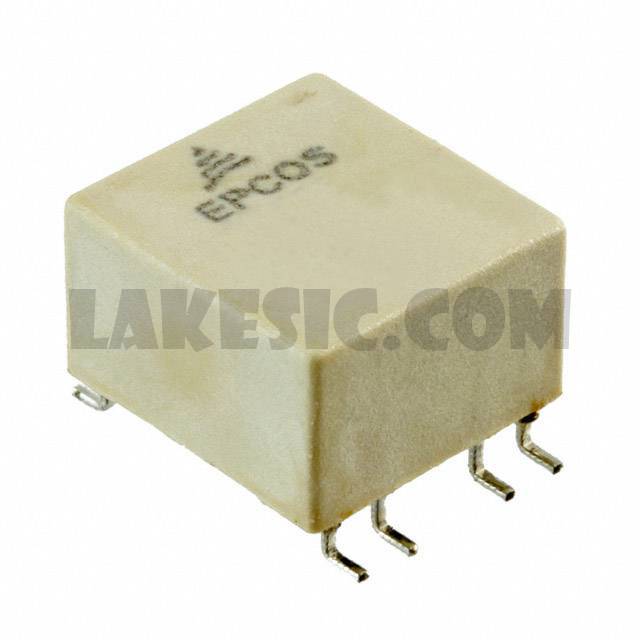

Part Number B82720S2301N040 Description CMC 12MH 300MA 2LN SMD Package / Case Horizontal, 8 Gull WingUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 12mH @ 10kHz 2 Line Common Mode Choke Surface Mount 300mA DCR 1.1Ohm (Typ)
To learn about the specification of B82720S2301N040, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82720S2301N040 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82720S2301N040.
We are offering B82720S2301N040 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82720S2301N040 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet B82720S Series Standard Package 1 Manufacturer EPCOS (TDK) Series B82720 Packaging Cut Tape (CT) Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 12mH @ 10kHz Current Rating (Max) 300mA DC Resistance (DCR) (Max) 1.1Ohm (Typ) Voltage Rating - DC - Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Surface Mount Size / Dimension 0.571" L x 0.524" W (14.50mm x 13.30mm) Height (Max) 0.421" (10.70mm) Package / Case Horizontal, 8 Gull Wing
