B82724J8532N040
B82724J8532N040

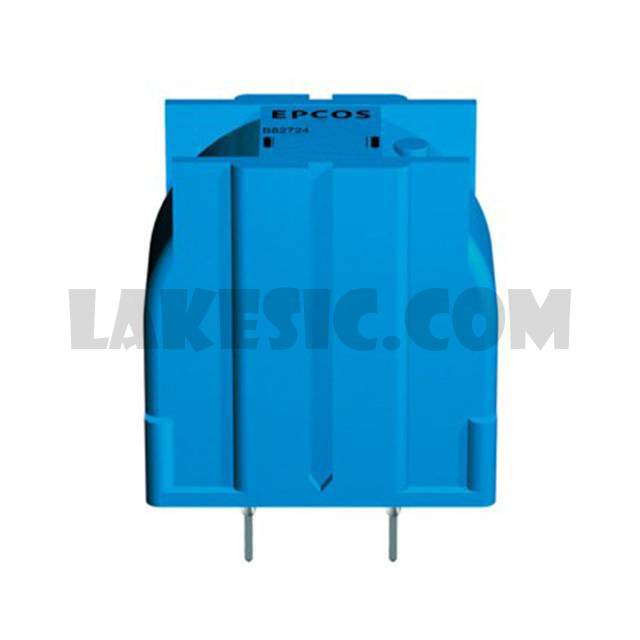

Part Number B82724J8532N040 Description RING CORE CHOKE 2X3,3MH 5,3 A +7 Package / Case Vertical, 4 PC PinUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 3.3mH @ 10kHz 2 Line Common Mode Choke Through Hole DCR 26mOhm (Typ)
To learn about the specification of B82724J8532N040, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add B82724J8532N040 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of B82724J8532N040.
We are offering B82724J8532N040 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
B82724J8532N040 - Product Attributes
Categories
Filters / Common Mode Chokes
Datasheet B82724J8yyyN Series Standard Package 240 Manufacturer EPCOS (TDK) Series B82724 Part Status Active Filter Type Power Line Number of Lines 2 Inductance @ Frequency 3.3mH @ 10kHz DC Resistance (DCR) (Max) 26mOhm (Typ) Voltage Rating - DC 800V Voltage Rating - AC 250V Operating Temperature -40°C ~ 125°C Ratings - Approvals - Features - Mounting Type Through Hole Size / Dimension 1.232" L x 0.728" W (31.30mm x 18.50mm) Height (Max) 1.307" (33.20mm) Package / Case Vertical, 4 PC Pin
