Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	BAP64-03
Standard Package	1
Manufacturer	NXP USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	PIN - Single
Voltage - Peak Reverse (Max)	175V
Current - Max	100mA
Capacitance @ Vr, F	0.35pF @ 20V, 1MHz
Resistance @ If, F	1.35Ohm @ 100mA, 100MHz
Power Dissipation (Max)	500mW
Operating Temperature	-65°C ~ 150°C (TJ)

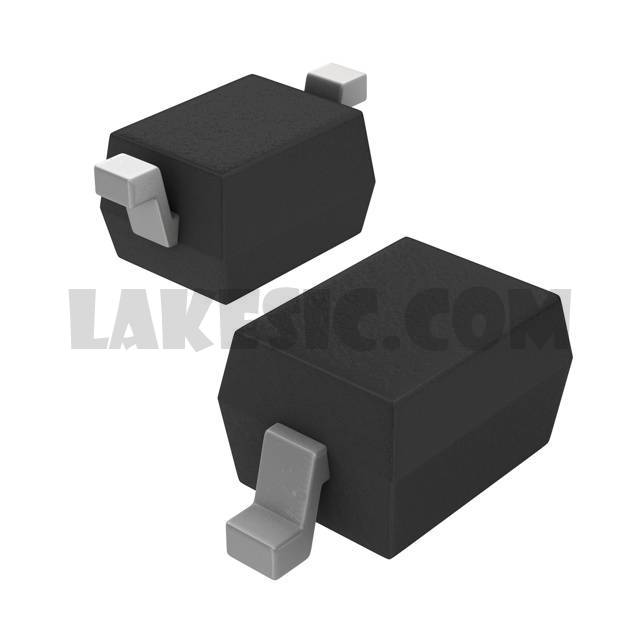

Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Base Part Number	BAP64
