Categories	Discrete Semiconductor Products / Diodes - RF
Datasheet	BAP64Q
Standard Package	3000
Manufacturer	NXP USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	PIN - 2 Pair CA + CC
Voltage - Peak Reverse (Max)	100V
Current - Max	100mA
Capacitance @ Vr, F	0.35pF @ 20V, 1MHz
Resistance @ If, F	1.35Ohm @ 100mA, 100MHz
Power Dissipation (Max)	125mW
Operating Temperature	-65°C ~ 150°C (TJ)

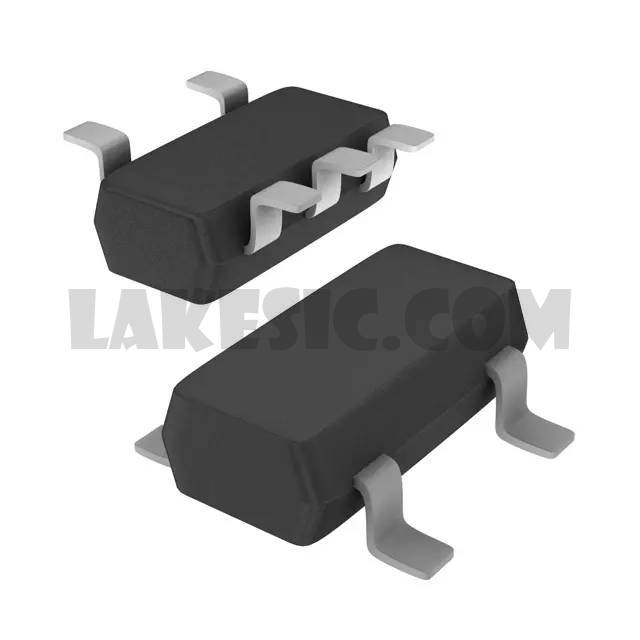

Package / Case	SC-74A, SOT-753
Supplier Device Package	5-TSOP
Base Part Number	BAP64Q
