Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS45A
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	125V
Current - Average Rectified (Io)	250mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr)	1.5µs
Current - Reverse Leakage @ Vr	500nA @ 125V
Capacitance @ Vr, F	4pF @ 0V, 1MHz
Mounting Type	Through Hole

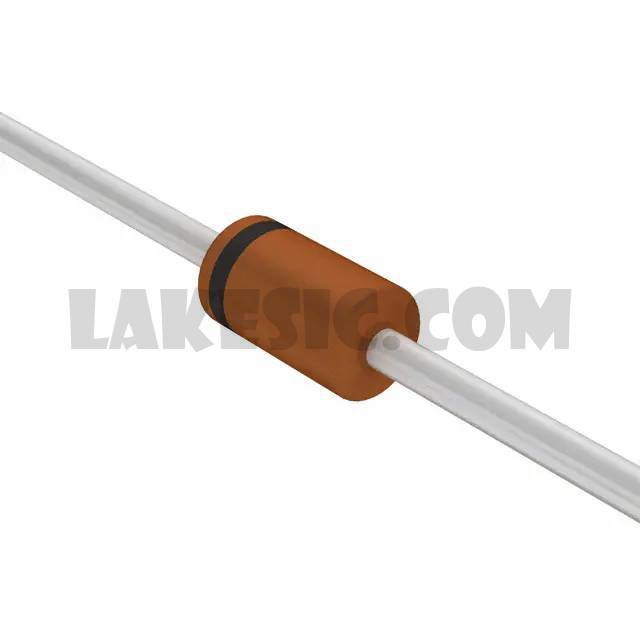

Package / Case	DO-204AG, DO-34, Axial
Supplier Device Package	DO-34
Operating Temperature - Junction	175°C (Max)
