BAS70-06FILM

Part NumberBAS70-06FILM

ManufacturerSTMicroelectronics

DescriptionDIODE ARRAY SCHOTTKY 70V SOT23-3

DatasheetBAS70

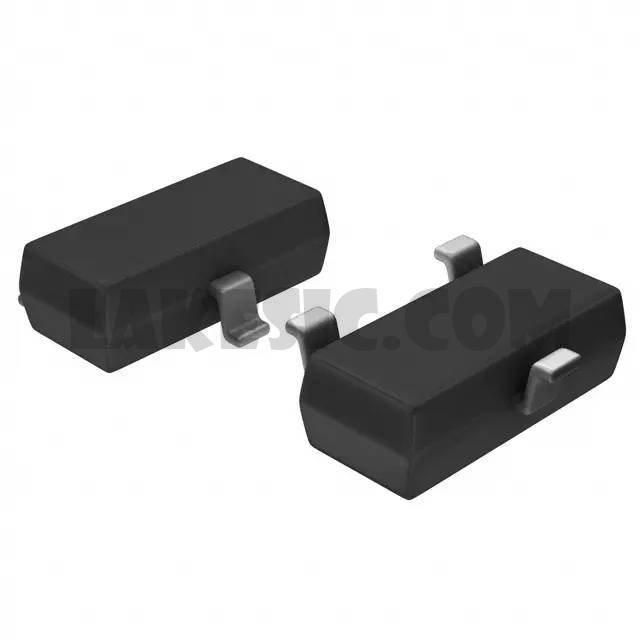

Package / CaseTO-236-3, SC-59, SOT-23-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Common Anode Schottky 70V 70mA (DC) Surface Mount TO-236-3, SC-59, SOT-23-3

To learn about the specification of BAS70-06FILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAS70-06FILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAS70-06FILM.
We are offering BAS70-06FILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAS70-06FILM - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAS70
Standard Package	3000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Configuration	1 Pair Common Anode
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	70V
Current - Average Rectified (Io) (per Diode)	70mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 15mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	10µA @ 70V
Operating Temperature - Junction	150°C (Max)
Mounting Type	Surface Mount
Package / Case	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	SOT-23-3
Base Part Number	BAS70-06
