BAS70KFILM

BAS70KFILM

Part NumberBAS70KFILM

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 70V 70MA SOD523

DatasheetBAS70

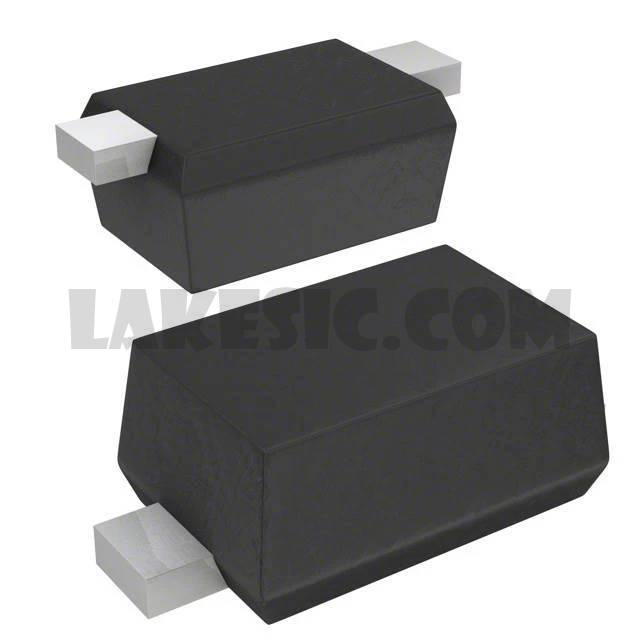

Package / CaseSC-79, SOD-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 70V 70mA (DC) Surface Mount SOD-523

To learn about the specification of BAS70KFILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAS70KFILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAS70KFILM.
We are offering BAS70KFILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAS70KFILM - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAS70
Standard Package	3000
Manufacturer	STMicroelectronics
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	70V
Current - Average Rectified (Io)	70mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 15mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	10µA @ 70V
Capacitance @ Vr, F	2pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-79, SOD-523
Supplier Device Package	SOD-523
Operating Temperature - Junction	150°C (Max)
Base Part Number	BAS70K
