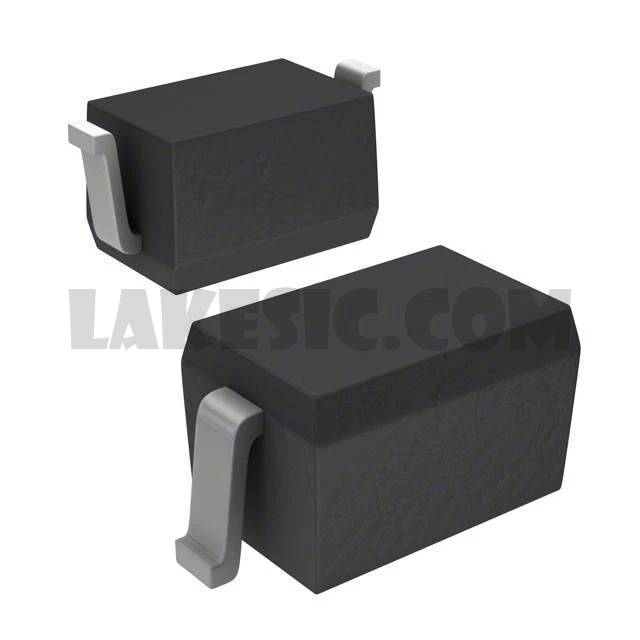

BAT54JFILM

BAT54JFILM

Part NumberBAT54JFILM

ManufacturerSTMicroelectronics

DescriptionDIODE SCHOTTKY 40V 300MA SOD323

DatasheetBAT54 Series Datasheet

Package / CaseSC-76, SOD-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 300mA (DC) Surface Mount SOD-323

To learn about the specification of BAT54JFILM, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT54JFILM with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT54JFILM.
We are offering BAT54JFILM for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT54JFILM - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	BAT54 Series Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	300mA (DC)
Voltage - Forward (Vf) (Max) @ If	900mV @ 100mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage @ Vr	1µA @ 30V
Capacitance @ Vr, F	10pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SC-76, SOD-323
Supplier Device Package	SOD-323
Operating Temperature - Junction	-40°C ~ 150°C
Base Part Number	BAT54J
