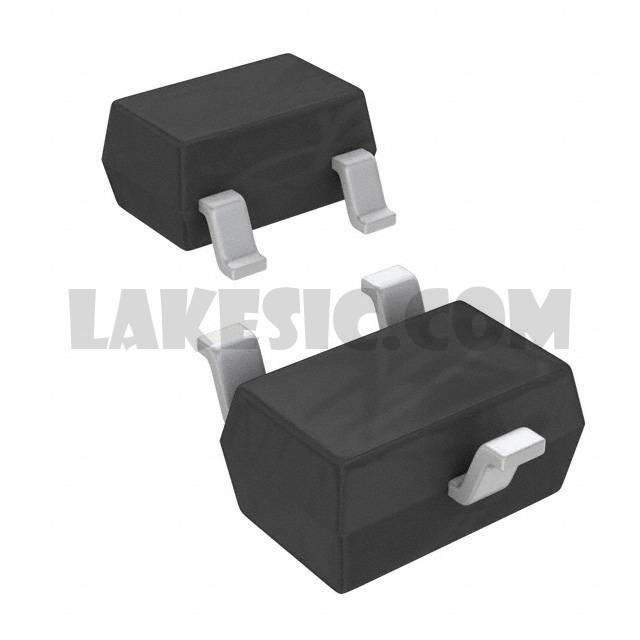

BAT54SWTR

Part NumberBAT54SWTR

ManufacturerSMC Diode Solutions

DescriptionDIODE SCHOTTKY 30V 100MA SOT323

DatasheetBAT54(W,AW,CW,SW)

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Schottky 30V 100mA Surface Mount SC-70, SOT-323

To learn about the specification of BAT54SWTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAT54SWTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAT54SWTR.
We are offering BAT54SWTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAT54SWTR - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Arrays
Datasheet	BAT54(W,AW,CW,SW)
Standard Package	1
Manufacturer	SMC Diode Solutions
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Configuration	1 Pair Series Connection
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io) (per Diode)	100mA
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	2µA @ 30V
Operating Temperature - Junction	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
