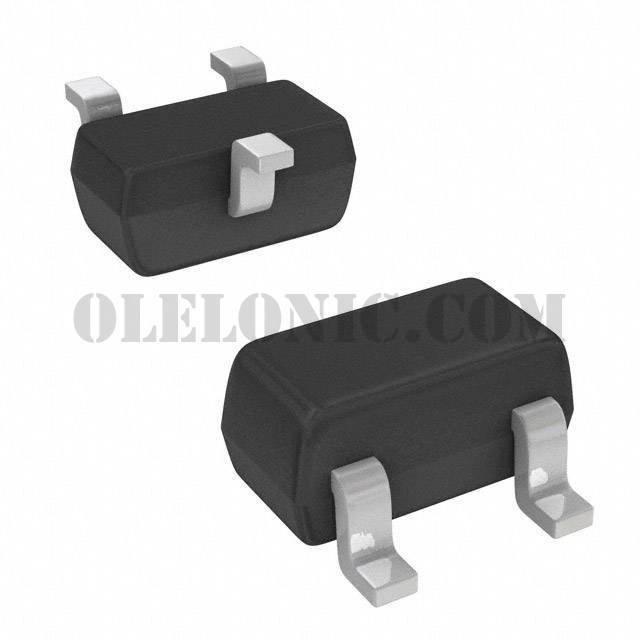

BAV99T

Part NumberBAV99T

ManufacturerON Semiconductor

DescriptionDIODE DUAL 85V 75MA SOT-523

DatasheetBAW56T, BAV70T, BAV99T

Package / CaseSOT-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Array 1 Pair Series Connection Standard 85V 75mA Surface Mount SOT-523

To learn about the specification of BAV99T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BAV99T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BAV99T.
We are offering BAV99T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BAV99T - Product Attributes

Categories

Discrete Semiconductor Products / Diodes - Rectifiers - Arrays

Datasheet

BAW56T, BAV70T, BAV99T

Standard Package

Manufacturer

ON Semiconductor

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Diode Configuration

1 Pair Series Connection

Diode Type

Standard

Voltage - DC Reverse (Vr) (Max)

85V

Current - Average Rectified (Io) (per Diode)

75mA

Voltage - Forward (Vf) (Max) @ If

1V @ 50mA

Speed

Small Signal =< 200mA (Io), Any Speed

Reverse Recovery Time (trr)

4ns

Current - Reverse Leakage @ Vr

2µA @ 75V

Operating Temperature - Junction

125°C (Max)

Mounting Type

Surface Mount

Package / Case

SOT-523

Supplier Device Package
