BC817DPN,115

Part NumberBC817DPN,115

ManufacturerNexperia USA Inc.

DescriptionTRANS NPN/PNP 45V 0.5A 6TSOP

DatasheetBC817DPN

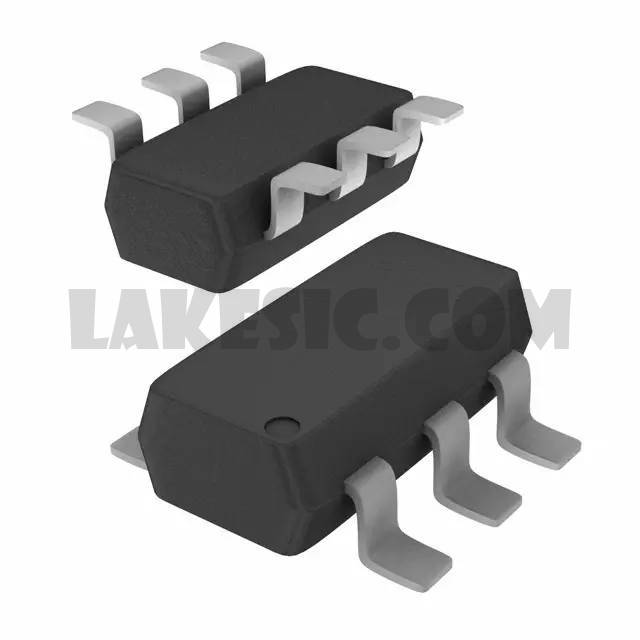

Package / CaseSC-74, SOT-457

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array NPN, PNP 45V 500mA 100MHz, 80MHz 600mW Surface Mount 6-TSOP

To learn about the specification of BC817DPN,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BC817DPN,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BC817DPN,115.
We are offering BC817DPN,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BC817DPN,115 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	BC817DPN
Standard Package	3000
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN, PNP
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	700mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	160 @ 100mA, 1V
Power - Max	600mW
Frequency - Transition	100MHz, 80MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-74, SOT-457
Supplier Device Package	6-TSOP
Base Part Number	BC817DPN
