BC847CDLP-7

BC847CDLP-7

Part NumberBC847CDLP-7

ManufacturerDiodes Incorporated

DescriptionTRANS 2NPN 45V 0.1A 6DFN

DatasheetBC847CDLP

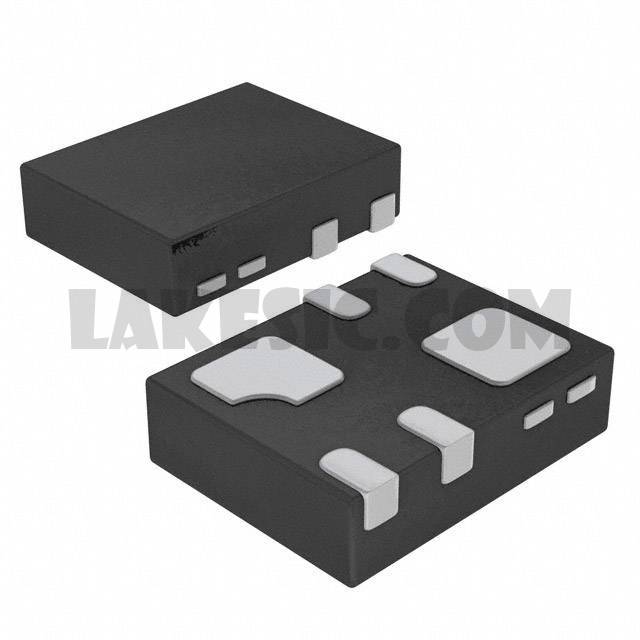

Package / Case6-XFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 2 NPN (Dual) 45V 100mA 100MHz 350mW Surface Mount X2-DFN1310-6 (Type B)

To learn about the specification of BC847CDLP-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BC847CDLP-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BC847CDLP-7.
We are offering BC847CDLP-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BC847CDLP-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	BC847CDLP
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	2 NPN (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	45V
Vce Saturation (Max) @ Ib, Ic	600mV @ 5mA, 100mA
Current - Collector Cutoff (Max)	15nA
DC Current Gain (hFE) (Min) @ Ic, Vce	420 @ 2mA, 5V
Power - Max	350mW
Frequency - Transition	100MHz
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-XFDFN Exposed Pad
Supplier Device Package	X2-DFN1310-6 (Type B)
Base Part Number	BC847CD
