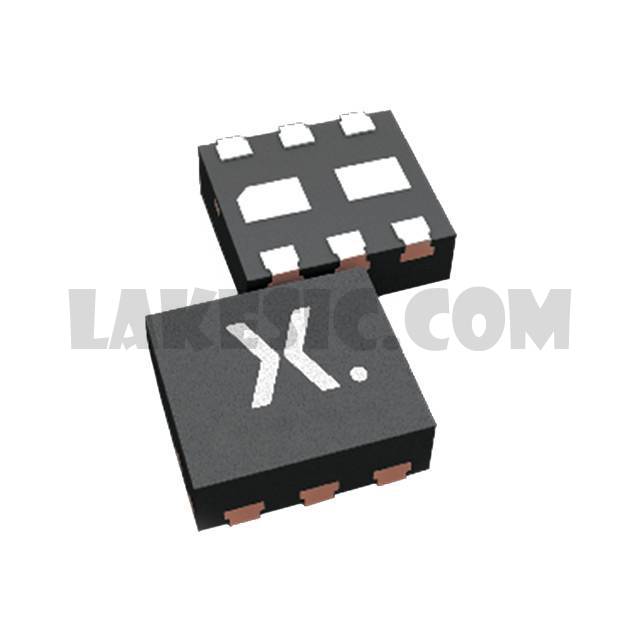

BC857RAZ


BC857RAZ

Part NumberBC857RAZ

Manufacturer

Description

Datasheet

Package / Case6-XFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

BC857RAZ - Product Attributes

Categories Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet
Standard Package1
ManufacturerNexperia USA Inc.
Series-
PackagingCut Tape (CT)
Part StatusActive
Transistor Type2 PNP (Dual)
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)45V
Vce Saturation (Max) @ Ib, Ic300mV @ 5mA, 100mA
Current - Collector Cutoff (Max)15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce200 @ 2mA, 5V
Power - Max325mW
Frequency - Transition100MHz
Operating Temperature150°C (TJ)
Mounting TypeSurface Mount
Package / Case6-XFDFN Exposed Pad
Supplier Device PackageDFN1412-6
