BCP56-10HX

BCP56-10HX

Part NumberBCP56-10HX

ManufacturerNexperia USA Inc.

DescriptionTRANS NPN 80V 1A SC73

DatasheetBCP56H, BCP56-10H, 16H

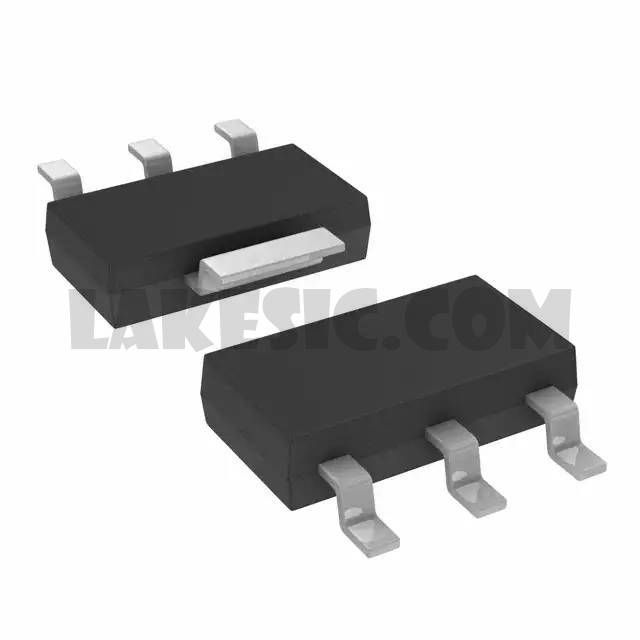

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 80V 1A 100MHz Surface Mount SC-73

To learn about the specification of BCP56-10HX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BCP56-10HX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BCP56-10HX.
We are offering BCP56-10HX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BCP56-10HX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	BCP56H, BCP56-10H, 16H
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	1A
Voltage - Collector Emitter Breakdown (Max)	80V
Vce Saturation (Max) @ Ib, Ic	500mV @ 50mA, 500mA
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	63 @ 150mA, 2V
Frequency - Transition	100MHz
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Package / Case	TO-261-4, TO-261AA
Supplier Device Package	SC-73
