BFS20W,115

BFS20W,115

Part NumberBFS20W,115

ManufacturerNexperia USA Inc.

DescriptionTRANS NPN 20V 0.025A SOT323

DatasheetBFS20W

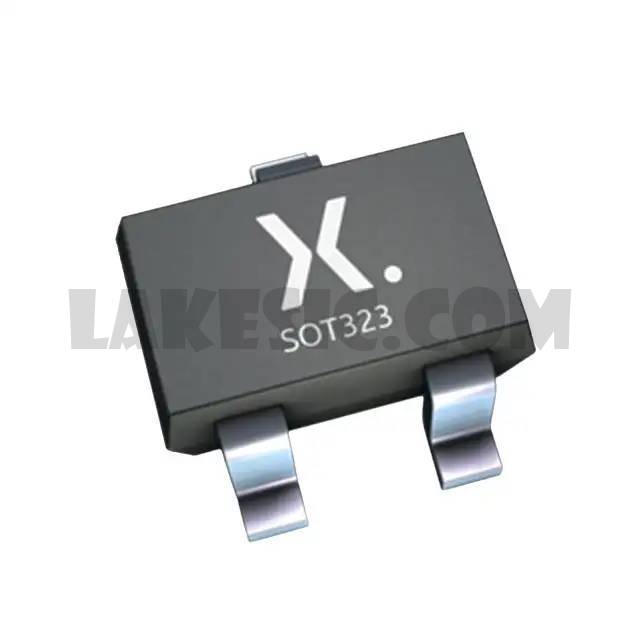

Package / CaseSC-70, SOT-323

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 20V 25mA 470MHz 200mW Surface Mount SC-70

To learn about the specification of BFS20W,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BFS20W,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BFS20W,115.
We are offering BFS20W,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BFS20W,115 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	BFS20W
Standard Package	3000
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	25mA
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	-
Current - Collector Cutoff (Max)	100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	40 @ 7mA, 10V
Power - Max	200mW
Frequency - Transition	470MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-70, SOT-323
Supplier Device Package	SC-70
Base Part Number	BFS20
