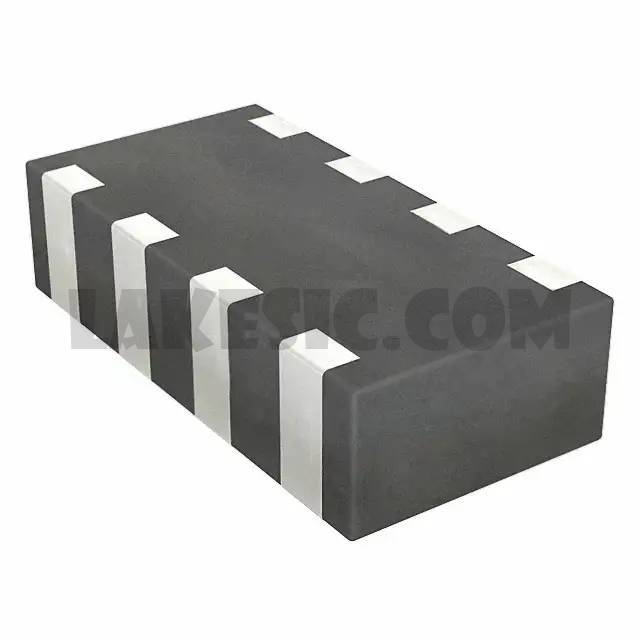

Categories	Filters / Ferrite Beads and Chips
Datasheet	BK Array Series Catalog
Standard Package	1
Manufacturer	Taiyo Yuden
Series	BK
Packaging	Cut Tape (CT)
Part Status	Active
Filter Type	-
Number of Lines	4
Impedance @ Frequency	120 Ohms @ 100MHz
Current Rating (Max)	150mA
DC Resistance (DCR) (Max)	200mOhm
Ratings	-
Operating Temperature	-55°C ~ 125°C
Package / Case	1206 (3216 Metric), Array, 8 PC Pad
Mounting Type	Surface Mount
Height (Max)	0.035" (0.90mm)
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)

BK20104M431-T	Taiyo Yuden, 430 Ohms @ 100MHz 4 Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 100mA 550mOhm, BK	View
BK32164S102-T	Taiyo Yuden, 1 kOhms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 100mA 680mOhm, BK	View
BK20104L100-T	Taiyo Yuden, 10 Ohms @ 100MHz 4 Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 100mA 150mOhm, BK	View
BK32164L181-T	Taiyo Yuden, 180 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 150mA 650mOhm, BK	View
BK32164W431-T	Taiyo Yuden, 430 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 100mA 350mOhm, BK	View
BK32164M121-T	Taiyo Yuden, 120 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 150mA 200mOhm, BK	View
BK20104L680-T	Taiyo Yuden, 68 Ohms @ 100MHz 4 Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 100mA 500mOhm, BK	View
BK32164S241-T	Taiyo Yuden, 240 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 200mA 300mOhm, BK	View
BK32164M471-T	Taiyo Yuden, 470 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 150mA 500mOhm, BK	View
BK20104W241-T	Taiyo Yuden, 240 Ohms @ 100MHz 4 Ferrite Bead 0804 (2010 Metric), Array, 8 PC Pad 100mA 500mOhm, BK	View
BK32164M301-T	Taiyo Yuden, 300 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), 8 PC Pad 150mA 450mOhm, BK	View
BK32164S121-T	Taiyo Yuden, 120 Ohms @ 100MHz 4 Ferrite Bead 1206 (3216 Metric), Array, 8 PC Pad 200mA 180mOhm, BK	View

BK32164M121-T

Part NumberBK32164M121-T
