Categories	Resistors / Through Hole Resistors
Datasheet	BR Series
Standard Package	1000
Manufacturer	Stackpole Electronics Inc
Series	BR
Packaging	Bulk
Part Status	Active
Resistance	20 mOhms
Tolerance	±1%
Power (Watts)	3W
Composition	Metal Foil
Features	Current Sense, Flame Proof, Non-Inductive, Pulse Withstanding, Safety
Temperature Coefficient	±20ppm/°C
Operating Temperature	-65°C ~ 350°C
Package / Case	Radial
Supplier Device Package	-

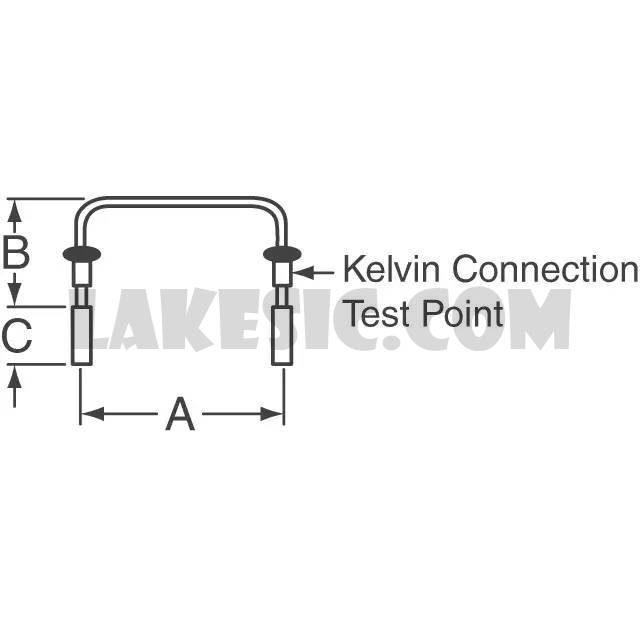

Size / Dimension	0.602" L x 0.065" W (15.30mm x 1.65mm)
Height - Seated (Max)	1.000" (25.40mm)
Number of Terminations	2
Failure Rate	-
