BSC014N04LSIATMA1

BSC014N04LSIATMA1

Part NumberBSC014N04LSIATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 40V 100A TDSON-8

DatasheetBSC014N04LSI

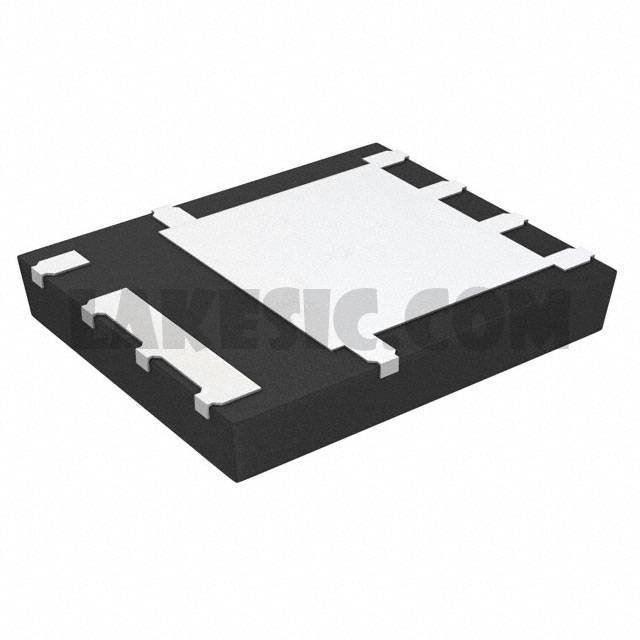

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 31A (Ta), 100A (Tc) 2.5W (Ta), 96W (Tc) Surface Mount PG-TDSON-8 FL

To learn about the specification of BSC014N04LSIATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSC014N04LSIATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSC014N04LSIATMA1.
We are offering BSC014N04LSIATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSC014N04LSIATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSC014N04LSI
Standard Package	5000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	31A (Ta), 100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	1.45mOhm @ 50A, 10V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	55nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	4000pF @ 20V
FET Feature	-
Power Dissipation (Max)	2.5W (Ta), 96W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8 FL
Package / Case	8-PowerTDFN
