BSC520N15NS3GATMA1

BSC520N15NS3GATMA1

Part NumberBSC520N15NS3GATMA1

ManufacturerInfineon Technologies

DescriptionMOSFET N-CH 150V 21A TDSON-8

DatasheetBSC520N15NS3 G

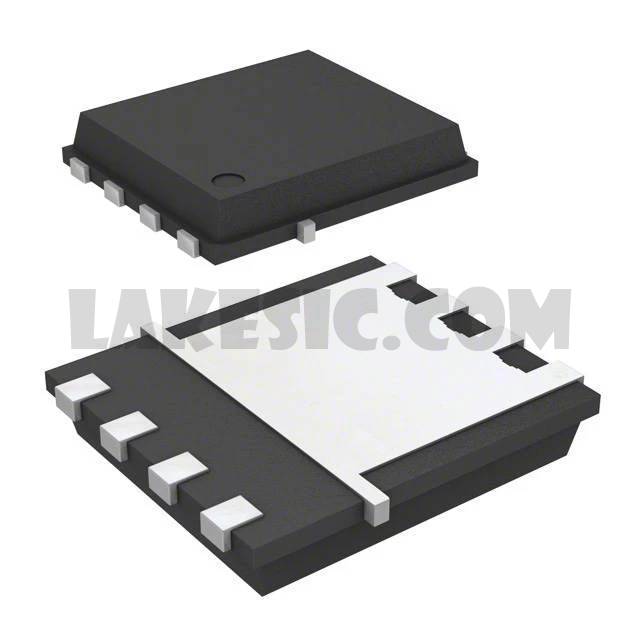

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 150V 21A (Tc) 57W (Tc) Surface Mount PG-TDSON-8-5

To learn about the specification of BSC520N15NS3GATMA1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSC520N15NS3GATMA1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSC520N15NS3GATMA1.
We are offering BSC520N15NS3GATMA1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

BSC520N15NS3GATMA1 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	BSC520N15NS3 G
Standard Package	5000
Manufacturer	Infineon Technologies
Series	OptiMOS™
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	150V
Current - Continuous Drain (Id) @ 25°C	21A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	8V, 10V
Rds On (Max) @ Id, Vgs	52mOhm @ 18A, 10V
Vgs(th) (Max) @ Id	4V @ 35µA
Gate Charge (Qg) (Max) @ Vgs	12nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	890pF @ 75V
FET Feature	-
Power Dissipation (Max)	57W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	PG-TDSON-8-5
Package / Case	8-PowerTDFN
