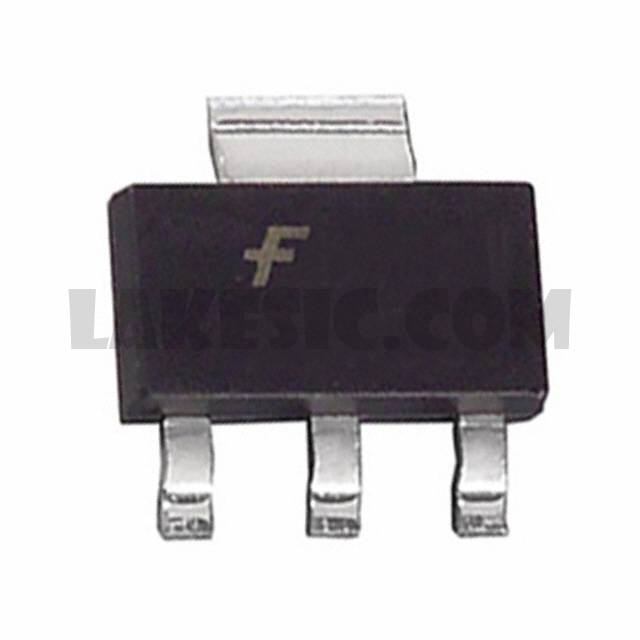

BSP50
BSP50
Part Number BSP50
Description TRANS NPN DARL 45V 0.8A SOT-223
Package / Case TO-261-4, TO-261AA
Unit Price Request a Quote
Lead Time To be Confirmed
Detailed Description Bipolar (BJT) Transistor NPN - Darlington 45V 800mA 1W Surface Mount SOT-223-4
To learn about the specification of BSP50, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BSP50 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of BSP50.
We are offering BSP50 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
BSP50 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet BSP50
Standard Package 4000
Manufacturer ON Semiconductor
Series -
Packaging Tape & Reel (TR)
Part Status Active
Transistor Type NPN - Darlington
Current - Collector (Ic) (Max) 800mA
Voltage - Collector Emitter Breakdown (Max) 45V
Vce Saturation (Max) @ Ib, Ic 1.3V @ 500µA, 500mA
Current - Collector Cutoff (Max) 50nA
DC Current Gain (hFE) (Min) @ Ic, Vce 2000 @ 500mA, 10V
Power - Max 1W
Frequency - Transition -
Operating Temperature -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-261-4, TO-261AA
Supplier Device Package SOT-223-4
Base Part Number BSP50
